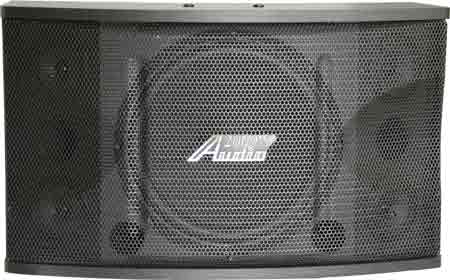

ASP5213 -
600W
Full Range 12" 3-Way Loudspeaker
If
you are looking for a pair of professional speakers for your karaoke applications, the
Audio2000'S® ASP5213
full range 12" three-way loudspeaker is the answer for you. The reasons? Please
look at the following product benefits for you:
| Portability: |
Relatively light weight (34 lbs) for its sound level driving capability (Power:
600W, max;
300W, rms; Freq. Response: 50-16,000Hz; Sensitivity: 90dB @ 1W 1M). |
| Mountability: |
A built-in internal speaker mounting top hat makes it possible that a light-weight
karaoke speaker can just be placed on the top of a speaker stand without using an external
mounting device. |
| Connectability: |
One speakon jack
and a pair of banana jacks are utilized for
connecting the speaker cables. |
| Sound Quality: |
A high
efficiency 12” woofer, two 4-1/2” tweeters,
two 3-1/2” tweeters, and a built-in
crossover circuitry are provided for smoothly transforming the electrical acoustic signal
to full and transparent sound waves. |
| Affordability: |
Wow, what a price tag for such a wonderful
sound driving power! |
As
a result, the ASP5213 loudspeaker is specifically designed and developed for your karaoke
applications at home or at any commercial location.
ASP5213 Loudspeaker Features:
* 600Watts
max/300Watts RMS, 2-Way System
* 1 X 12" Woofer + 2
X 4-1/2" Tweeters + 2 X 3-1/2" Tweeters
* One Speakon Jack and a Pair of Banana Jacks for Speaker Cable Connection
* Internal Speaker Mounting Top Hat
* Acoustic-Tune Ports for Superior Sound Venting
* 12dB / Octave High-Pass Crossover Network
ASP5213 Loudspeaker Specifications
Impedance |
8 Ohms,
Nominal |
Dimension (W X H X D) |
24.0" X 14.2" X 12.2" |
Frequency Response |
50 -
16 KHz (+/- 3 dB) |
Sensitivity |
90 dB @ 1M, 1W |
| Weight |
33.8 lbs |
Power Output |
600W Max;
300W RMS |

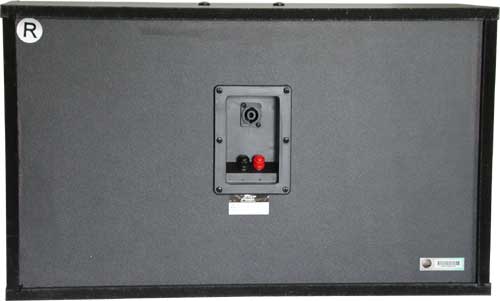

ASP5213 Loudspeaker
Rear View:

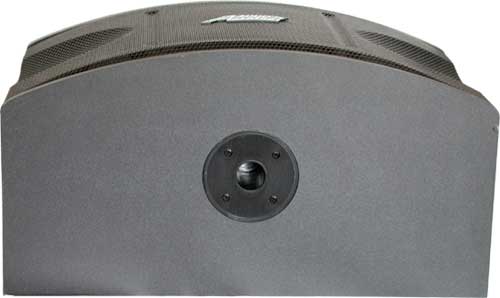

ASP5213 Loudspeaker
with an Internal Speaker Mounting Top Hat:
