AKM7061 - Professional Digital Key Changer

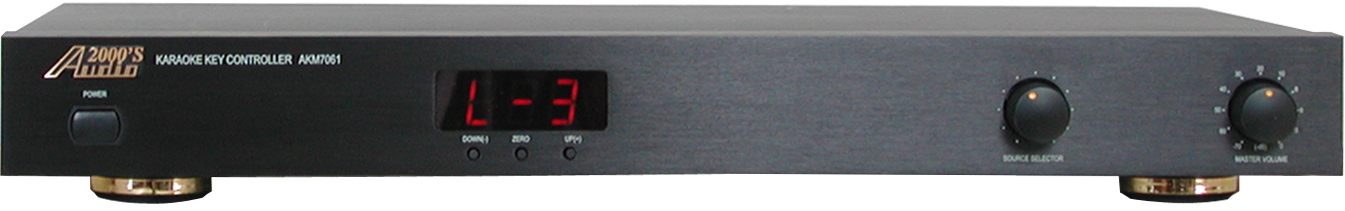

Front View

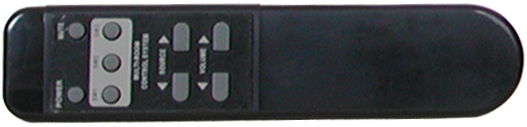

Remote Control

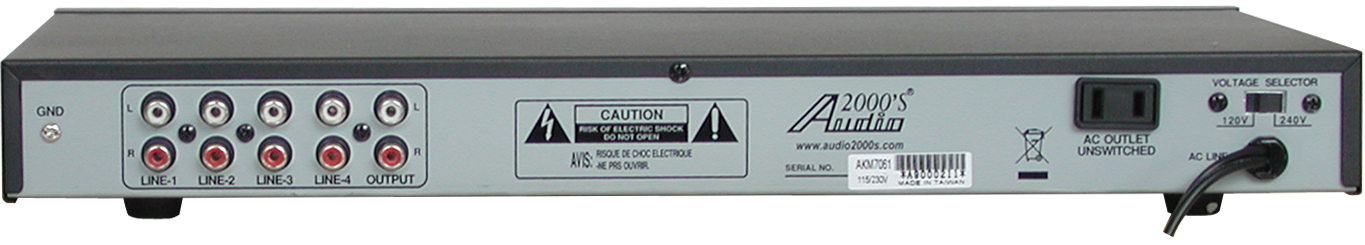

Rear View

The Audio2000'S^Ž AKM7061 unit is a professional digital key changer utilizing the DSP (Digital Signal Processing technology). A rack-mount kit is included in the AKM7061 package to have the AKM7061 be a rack-mountable unit.

With a remote control commander, four input sources (LINE-1, LINE-2, LINE-3 and LINE-4) and one output (OUTPUT), the AKM7061 is designed to be versatile and convenient to use.

The AKM7061 has been engineered for high quality pitch sound effects with outstanding performances equal to that of any professional sound effectors costing much more.

SPECIFICATIONS

Power Consumption 18W

Total Harmonic Distortion 0.05%

Signal to Noise Ratio 70dB

Frequency Response 10-15KHz @-3dB

Input Impedance 47KOhms

Nominal Input Level 1.0V

Output Impedance 1KOhms

Nominal Load Impedance 10KOhms

Maximum Output Level 2.0V

Key Level Frequencies:
-6 (820Hz)            0 (1000Hz)             +6 (1180Hz)
-5 (850Hz)                                           +5 (1150Hz)
-4 (880Hz)                                           +4 (1120Hz)
-3 (910Hz)                                           +3 (1090Hz)
-2 (940Hz)                                           +2 (1060Hz)
-1 (970Hz)                                           +1 (1030Hz)

Dimensions (W X H X D) 16 1/2" X 1 3/4" X 9 7/8"

Weight (Net) 4.8lb
