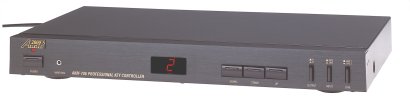

AKM706 - Professional Digital Key Changer

The Audio2000'S^® AKM706 unit is a professional digital key changer to be utilized to adjust the pitch of music or vocal sound for professional sound or leisure entertainment applications.  A rack-mount kit is included in the AKM706 package to have the AKM706 be a rack-mountable unit.

With three input sources (LINE 1, LINE 2 and TAPE) and two output ports (Output A and Output B), the AKM706 is designed to be versatile and convenient to use.

The AKM706 has been engineered for high quality pitch sound effects with outstanding performances equal to that of any professional sound effectors costing much more.

SPECIFICATIONS

Power Consumption	18W
Total Harmonic Distortion	0.05%
Signal to Noise Ratio	70dB
Frequency Response	10-15KHz @-3dB
Input Impedance	47KOhms
Nominal Input Level	1.0V
Output Impedance	1KOhms
Nominal Load Impedance	10KOhms
Maximum Output Level	2.0V
Key Level Frequencies:   -6 (820Hz)            0 (1000Hz)             +6 (1180Hz)   -5 (850Hz)                                           +5 (1150Hz)   -4 (880Hz)                                           +4 (1120Hz)   -3 (910Hz)                                           +3 (1090Hz)   -2 (940Hz)                                           +2 (1060Hz)   -1 (970Hz)                                           +1 (1030Hz)
Dimensions (W X H X D)	16 1/2" X 1 3/4" X 9 7/8"
Weight (Net)	4.8lb
