The Audio2000'S^® AWP6043 portable all-in-one wireless PA system with a rechargeable battery, USB/SD inputs and FM tuner is a portable self-contained PA system containing a 2.2AHr rechargeable battery, a wireless microphone system, a USB input port, an SD card input port, a FM radio tuner, an LED display, a built-in amplifier, and a speaker.  The above wireless microphone system includes a belt-pack wireless transmitter, a headset microphone, a lavaliere microphone.  The built-in USB port and SD card port allow the users to play music or other sound effects for their particular applications. An FM radio tuner with an LED display is bulit in the system for additional application needs. An AUX input connector and an AUX output connector are provided to have the AWP6043 be able to be used with any other PA or audio system.  Two 1/4” input ports are provided to be used as electric guitar  or microphone inputs.  A 3.5mm microphone input port is also provided. The combination of the built-in amplifier and the speaker of the AWP6043 provides  60W maximum power output  to achieve effective PA applications.  Overall, the AWP6043 is designed and manufactured to be a versatile, user-friendly, convenient and reliable system.

APPLICATIONS

School Teacher, Church, Hotel Conference Room, Aerobics Instructor, Sport Coach, Auction, Street Musician and Any Small Meeting Room



FEATURES	AWP6043 FRONT VIEW	AWP6043 REAR VIEW
AWP6040 SIDE VIEW	BODY-PACK & MICROPHONES	SPECIFICATIONS
ACCESSORIES



FEATURES

• Built-in 12VDC 2.2AH Rechargeable Battery
• 60W Max. Power Output
• One Body-Pack Wireless Transmitter, One Lavaliere Microphone, One Headset Microphone, and Built-in Wireless Receiver
• One Wireless Microphone Volume Control
• One 1/4" Microphone Input and one 3.5mm Microphone Input
• One Microphone Volume Control
• One 3.5mm AUX Audio Input (suitable as an iPOD input)
• AUX Audio Input Volume Control
• One 3.5mm AUX Audio Output
• Built-in USB Reader and SD Card Reader
• A Built-In FM Tuner with LED Display and Tuner/MP3 Volume Control
• Built-in 9VDC charger
• Echo Control
• Tone Control
• One 12VDC Input



Back To Top

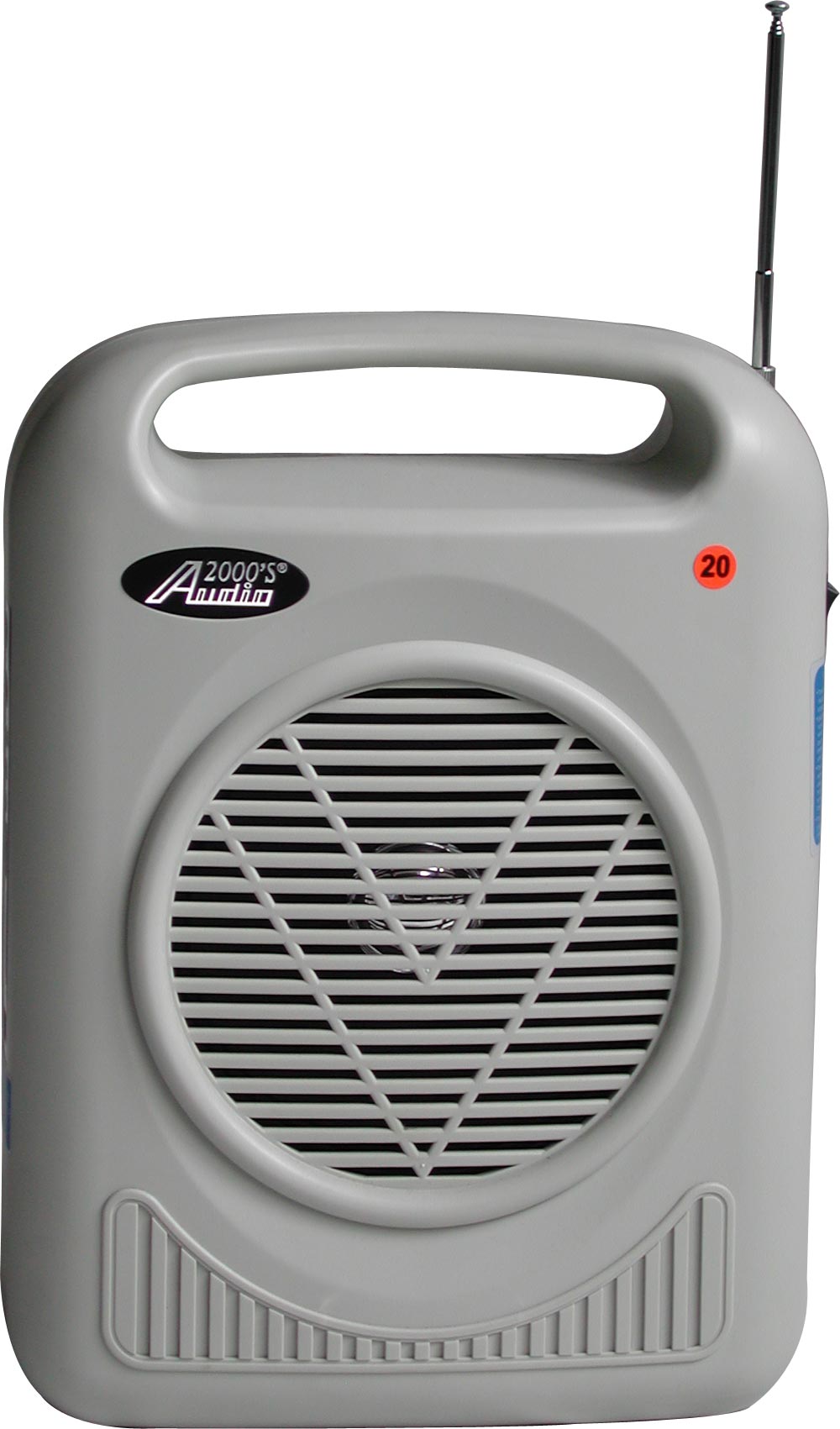

AWP6043 FRONT VIEW

Click here to enlarge the above image.

Back To Top

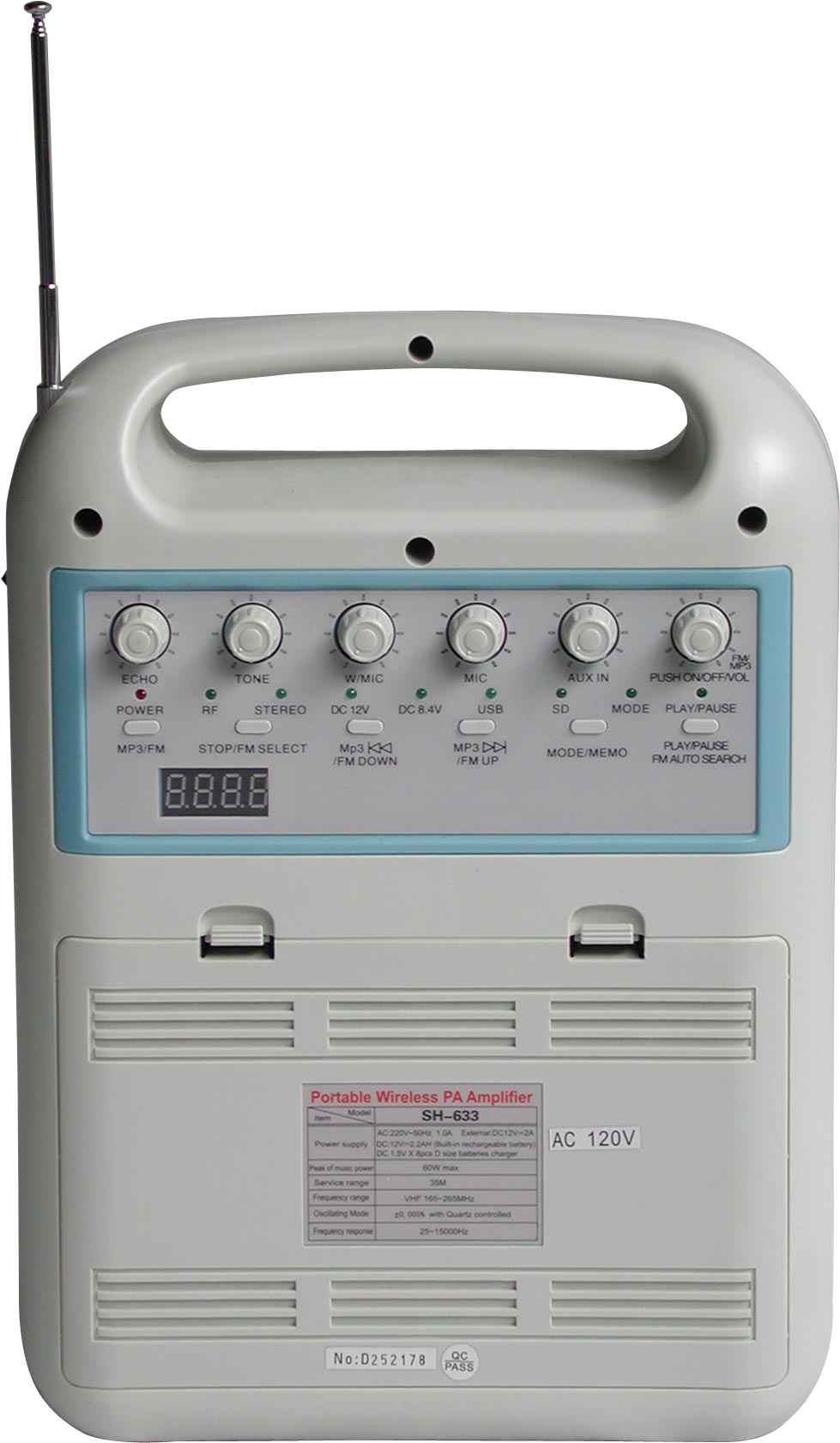

AWP6043 REAR VIEW

Click here to enlarge the above image.

Back To Top

AWP6040 SIDE VIEW

Back To Top

BODY-PACK & MICROPHONES

Back To Top

SPECIFICATIONS

Wireless Transmitter:

Carrier Frequency	VHF
Transmission Power	Less Than 30mW
Transmission Mode	FM
Power Consumption	70mA, Max.
Battery	9V (or 8.4V Rechargeable Battery)

Wireless Receiver:

Audio Output Power	60W (Max.)
S/N Ratio	> 60dB
Frequency Response	100 - 12,000 Hz
Sensitivity	10dBuV
Recharge Time	8 Hrs
Battery Capacity	3 Hrs (12VDC, 2.2AH)
Service Range	100ft (30M)
Dimensions (W X D X H)	228 X 138 X 308mm (9.0" X 5.4" X 12.1")
Weight	7.7 lbs (3.5Kg)



Back To Top

ACCESSORIES

              ITEMS                                      QUANTITIES
        AWP6043 Unit                                         1
        AWX6141 (Body-Pack Transmitter)      1
        AEM6141M (Lavaliere Microphone)      1
        AEM6141M (Headset Microphone)       1
        Owner's Manual                                        1
        9V Battery                                                 1
