AWP6040 - Portable All-In-One Wireless PA System with Rechargeable Battery



The Audio2000'S AWP6040 portable all-in-one wireless PA system with a rechargeable battery is a portable self-contained PA system containing an 1.2AHr rechargeable battery, a wireless microphone system, a built-in amplifier, a speaker, and a heavy-duty carrying bag.  The above wireless microphone system includes a belt-pack wireless transmitter, a headset microphone, a lavaliere microphone.  An AUX input connector and an AUX output connector are provided to have the AWP6040 be able to be used with any other PA or audio system.  An 1/4” connector is provided to be used as an electric guitar input or a microphone input.  The combination of the built-in amplifier and the speaker of the AWP6040 provides  25W maximum power output to achieve effective PA applications.  A carrying bag is provided for portability and mobility of the AWP6040.  Overall, the AWP6040 is designed and manufactured to be a versatile, user-friendly, convenient and reliable system.

APPLICATIONS

School Teacher, Church, Hotel Conference Room, Aerobics Instructor, Sport Coach, Auction, Street Musician and Any Small Meeting Room



FEATURES

AWP6040 FRONT VIEW

AWP6040 REAR/SIDE VIEW



AWP6040 TOP VIEW



BODY-PACK & MICROPHONES



SPECIFICATIONS



ACCESSORIES





Back To Top

FEATURES (ENHANCED ON SEPTEMBER 01, 2011)

  • Built-in 12VDC 1.2AH Lead-Acid Rechargeable Battery
  • 25W Max. Power Output
  • One Handheld Wireless Microphone and Built-in Wireless Receiver
  • Wireless Microphone Volume Control
  • One 1/4" Microphone Input
  • One 1/4" Microphone Volume Control
  • One 3.5mm Microphone Input
  • One 3.5mm Microphone Volume Control
  • One 3.5mm AUX Audio Input (suitable as an iPOD input)
  • AUX Audio Input Volume Control
  • One 3.5mm AUX Audio Output
  • Built-in 9VDC charger
  • Echo Control
  • Tone Control
  • One Heavy-Duty Carrying Bag
  • One 12VDC Input



Back To Top

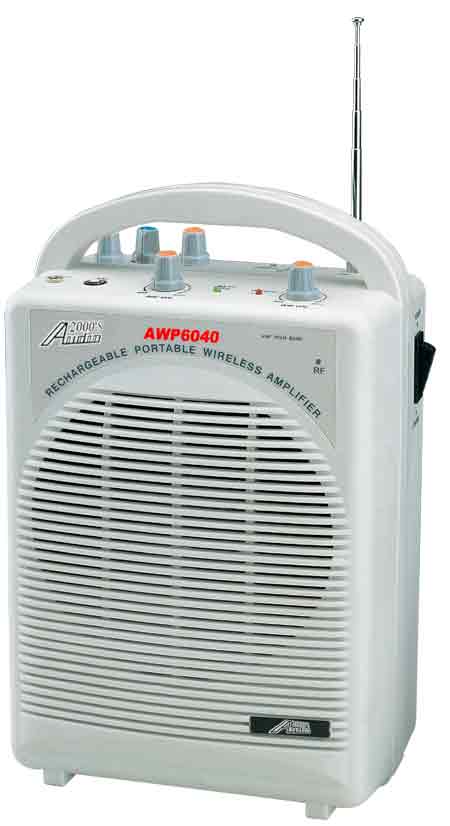

AWP6040 FRONT VIEW


Click here to enlarge the above image.

Back To Top

AWP6040 REAR/SIDE VIEW



Click here to enlarge the above image.

Back To Top

AWP6040 TOP VIEW




Click here to enlarge the above image.

Back To Top

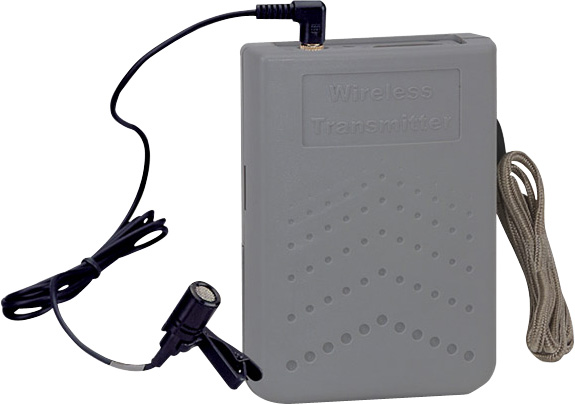

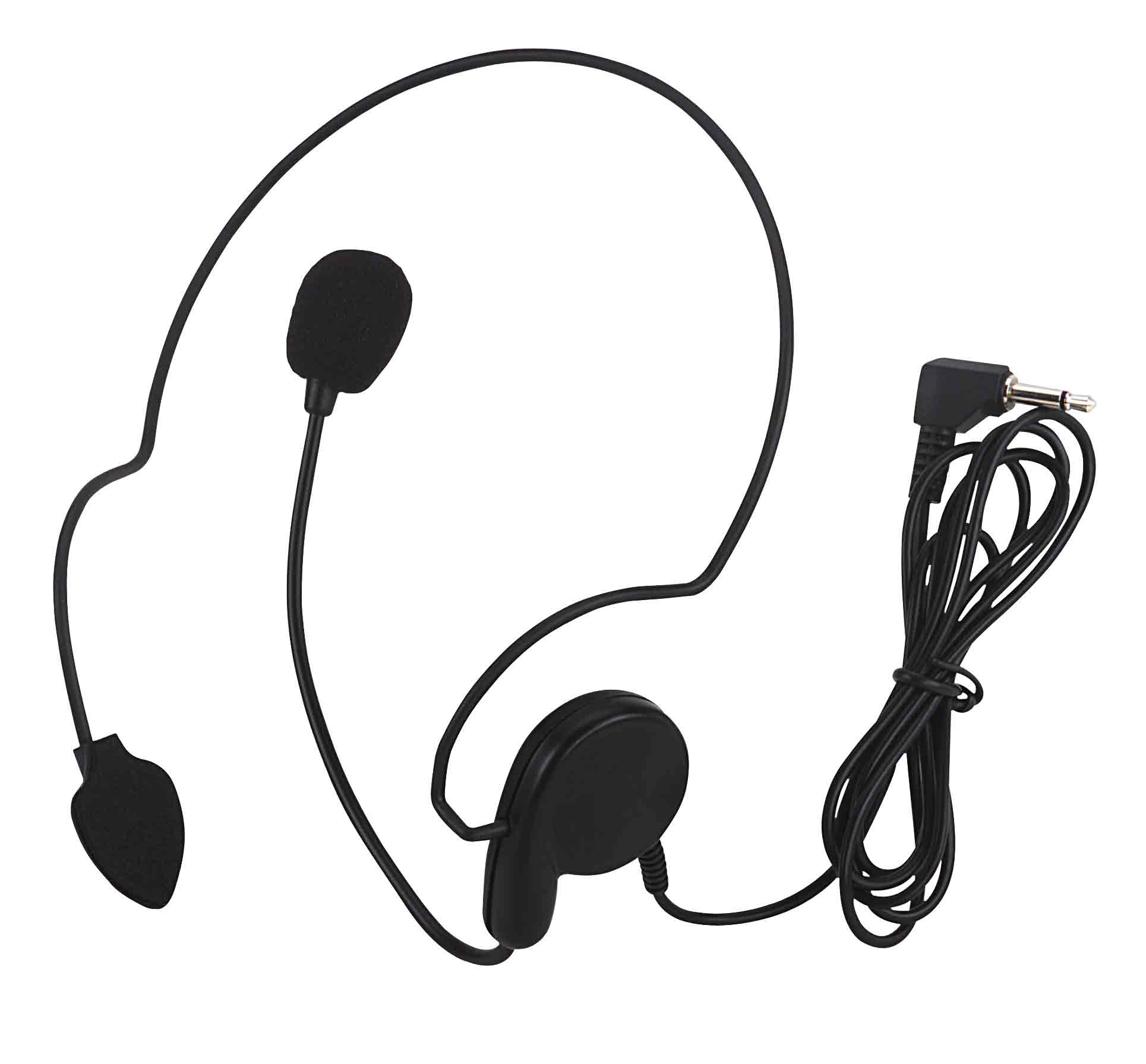

AWX6141 BODY-PACK TRANSMITTER, LAVALIERE MICROPHONE (AEM6141M) AND HEADSET MICROPHONE (AEM6141H)



Back To Top

SPECIFICATIONS

Wireless Transmitter:

Carrier Frequency

VHF

Transmission Power Less Than 30mW

Transmission Mode

FM

Power Consumption

70mA, Max.

Battery

9V (or 8.4V Rechargeable Battery)

Wireless Receiver:

Audio Output Power

25W (Max.)

S/N Ratio

> 60dB

Frequency Response

100 - 12,000 Hz

Sensitivity

10dBuV

Recharge Time

8 Hrs

Battery Capacity

3 Hrs (12VDC, 1.2AH)

Service Range

100ft (30M)

Weight 6.6 lbs
Dimensions (W X D X H) 180 X 110 X 290mm (7.1" X 4.3" X 11.4")

Back To Top

ACCESSORIES

              ITEMS                                      QUANTITIES
        AWP6040 Unit                                         1
        AWX6141 (Body-Pack Transmitter)      1
        AEM6141M (Lavaliere Microphone)      1
        AEM6141M (Headset Microphone)       1
        Owner's Manual                                        1
        9V Battery                                                 1

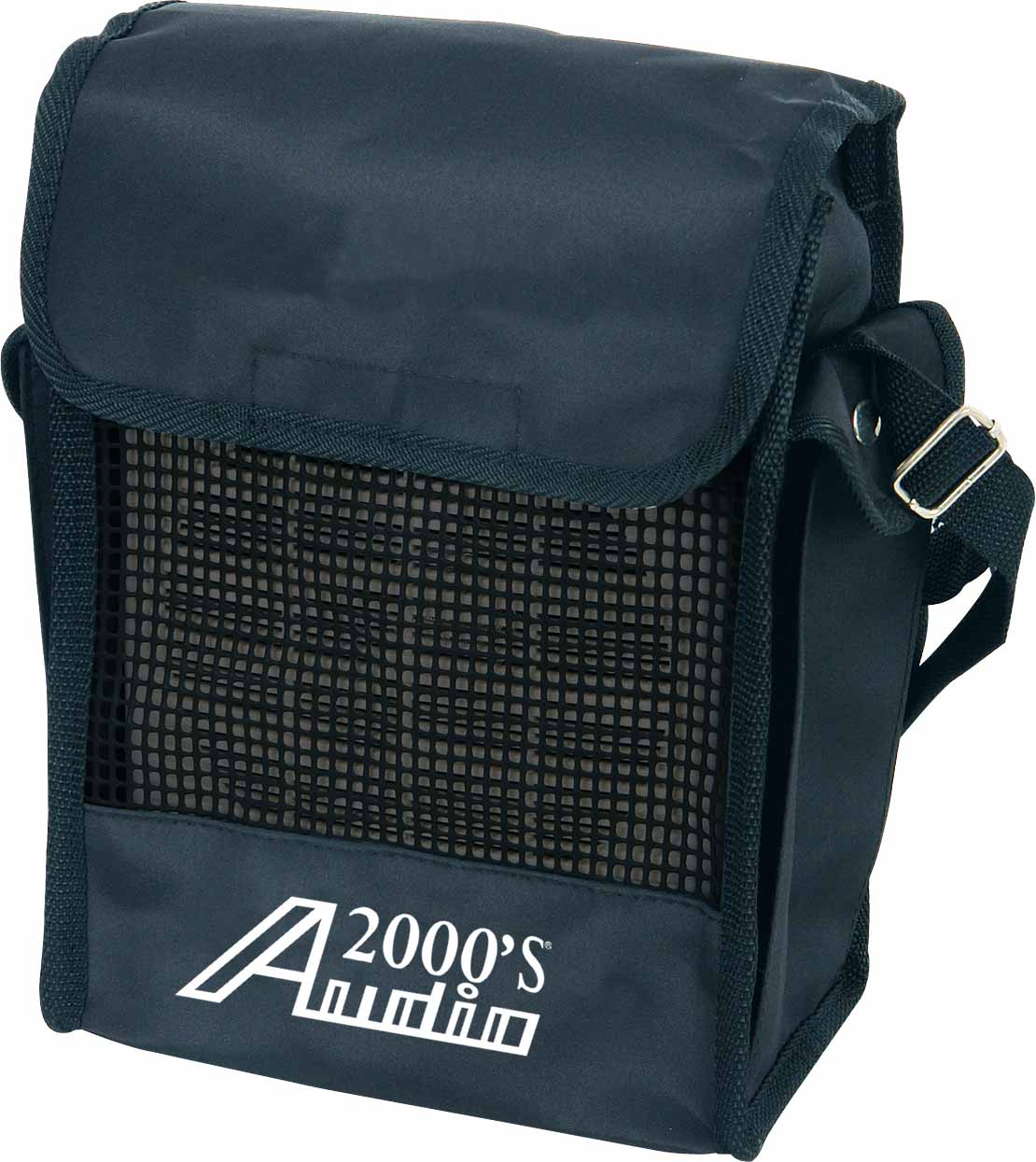

        Heavy-Duty Carrying Bag                        1

 Back To Top
