AKJ7076 - Karaoke
Mixing Amplifier
with Digital Key Control &
Echo

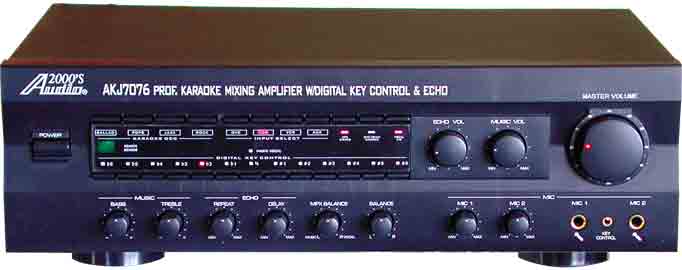

AKJ7076 Front View

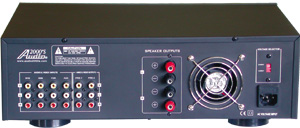

AKJ7076 Rear View
The Audio2000'S® AKJ7076
is a karaoke
mixer with a digital key control, a digital echo, and a 100W
+ 100W amplifier.
The AKJ7076
digital key & echo karaoke mixing
amplifier contains two microphone inputs and four music source inputs. Up to
two microphone inputs can be mixed with one of the four music sources.
A
master volume control knob is used to
control the mixed music & microphone volume. level. A
music volume control knob
is used to control
the music volume. There are
two individual microphone volume control knobs to adjust each microphone volume
individually so that various loudness of individual voice can be compensated as desired.
The music source input sound can have the tone
adjusted through a treble tone control knob and a bass tone control knob.
The AKJ7076
digital key & echo karaoke mixing
amplifier further contains the echo control function, the key control function, and voice
canceling function. The echo control function enables the users to control or adjust
the echo volume, the echo delay, and/or the echo repeat.
The key control function allows the users to adjust the key
up to +6 or -6 steps. The voice canceling feature is
controlled by the MPX Balance knob, which selects the
percentage of the music sound from the left channel or right
channel. When the MPX Balance knob is turned all the way to
the left, all the music sound is solely from the left
channel. When the MPX Balance knob is turned all the way to
the right, all the music sound is solely from the right
channel.
As can
be seen from the AKJ7076 rear panel, there are four video
inputs. Each video input is selected through the
corresponding audio input. There are two pre-amp. outputs
and one set of the banana speaker jack. To enhance the
heat dissipation capacity, a cooling fan is installed at the
rear panel.
The AKJ7076
digital key & echo karaoke mixing
amplifier has been engineered for high quality sound with a wide dynamic range, low noise
level. This is achieved with great attention to various product development stages,
from the early product planning stage, through the high quality circuit design stage, to
the final production stage with strict component selection. All of these make the AKJ7076
digital key & echo karaoke mixing amplifier an enjoyable karaoke entertainment vehicle
for all the users.
Features Configured To Be User Friendly
Remote Control:
Yes
Key Control Steps:+/-6
Digital Key Control Display: Yes
Digital Echo Control: Vol/Repeat/Delay-time
Microphone Inputs :Two with
One Key Control Jack
Master Volume Control: es
Individual Microphone Volume Controls:
Two
Music Volume Control: Yes
Music Balance, Bass, Treble Control:
Yes
MPX Balance Control:
Yes
Pre-out: Two
Signal-to-Noise Ratio (IEC-A):95dB
SPECIFICATIONS
Max. Output |
200W / 8 Ohms (EIAJ) (100W X 100W) |
Total Harmonic Distortion |
0.2% @ 1KHz, -3dB, 8 Ohms |
Microphone Input Sensitivity |
100mV @ 1KHz (T.H.D. 0.1%) |
Music Input Sensitivity |
150mV / 47K
Ohms |
Output Level |
130mV / 50K
Ohms |
Freq. Response |
25 - 80,000 Hz |
Signal-To-Noise Ratio |
95 dB |
Tone Control Char. (Bass) |
+/- 10 dB @ 100 Hz |
Tone Control Char. (Treble) |
+/- 10 dB @ 10 KHz |
Speaker Terminal Load |
8 to 16 Ohms |
Power Consumption |
175W |
Dimensions (W X H X D) |
420 X 130 X 398mm (16.5" X
5.1" X 15.7") |
Weight |
12.0 Kg (26.4 lb) |
Accessories |
Remote Control Commander |
|
