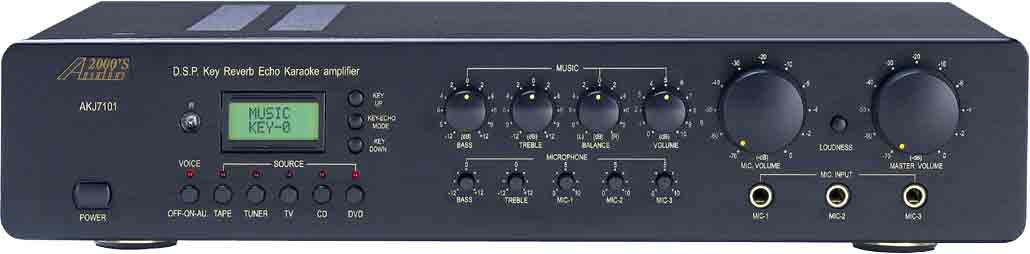

AKJ7101 - DSP Reverb, Echo & Key Mixer with Remote Control







The Audio2000'S® AKJ7101 DSP reverb, echo & key mixer with remote control is one of the most advanced karaoke equipment featuring innovative design and user-friendly functions.

Incorporated with an embedded digital signal processor (DSP), the AKJ7101 features the microphone reverb and echo functions, and the music digital key control.

The AKJ7101 features three microphone inputs and five music source  inputs.  There are three overall volume control knobs: One master volume control knob, one music volume control knob, and one microphone volume control knob. The master volume control knob is used to control the sound level of the combined music and microphone audio signals The music volume control knob is used to control the music sound level. The microphone volume control is used to control all three microphone sound levels at the same time. Three individual microphone volume control knobs are featured to adjust each microphone volume individually so that sound level of individual voice can be compensated as desired.  Both the microphone inputs and the music source inputs have the treble and bass controls.

The AKJ7101 further features a key control function, a reverb function, an echo control function  and a voice canceling function.  The key control function provides the users the capabilities of adjusting the key of the background music to match the users' voice.  The reverb control function allows the users to control the reverb volume. The echo control function enables the users to control or adjust the echo volume, the echo delay, and/or the echo repeat. The voice canceling function enhances the users' entertainment capacity by allowing users to remove the multiplexed vocal sound from the background music as desired.

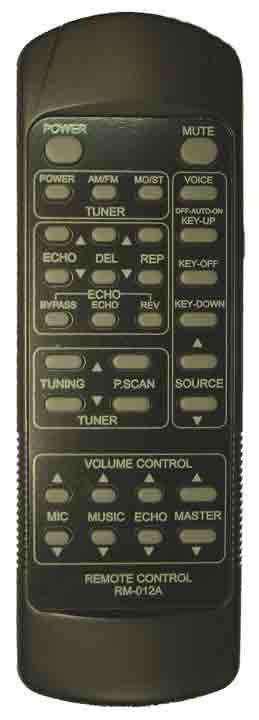

A full-function remote control is included for users' conveniences.  In addition,  four audio input terminals and three video input terminals enable users to operate up to four audio/video equipment simultaneously. Two video output jacks allow the users to use two TV's or monitors at the same time.  The tape-in and tape-out terminals are provided for recording purpose.

The extraordinary features of quality key control with extremely low key-shift distortion, clear/transparent reverb and echo sound, versatile performances and function, and rugged/delicate appearance make the AKJ7101 professional karaoke mixing amplifier an outstanding value in any critical karaoke or DJ application.

APPLICATIONS

Karaoke jockey (KJ); karaoke; home entertainment

FEATURES CONFIGURED TO BE USER FRIENDLY

  1. Digital Signal Processor (DSP)

  2. Green  LCD  Display

  3. Full Function REMOTE CONTROL

  4. Built-in Stereo Power Amplifier

  5. Temperature/Output DC/Short Circuit Protection

  6. Turn-On Output Muting

  7. Subsonic & Ultrasonic Filters

  8. AC Circuit Breaker (on Fuse)

  9. Five Microphone Inputs

  10. Individual Microphone Volume Controls

  11. Music Volume, Master Microphone Volume, and Master Volume Controls

  12. Microphone Tone Controls

  13. Digital REVERB & ECHO

  14. Digital KEY CONTROL

  15. MULTI AUDIO Karaoke Function

  16. Three VIDEO Inputs and Four AUDIO Inputs

  17. Two Audio and Video Outputs

  18. One Tape-In and One Tape-Out

SPECIFICATIONS

 OUTPUT LEVEL RATING

>6V RMS



 INPUT SENSITIVITY

MICROPHONE--- 75 dB
DVD --- 40 dB
CD --- 40 dB
TV --- 40 dB
TUNER --- 40 dB
TAPE IN --- 40 dB

OUTPUT LEVEL

4V @ 10K Ω

S/N RATIO

90 dB @ 8 Ω, 20 – 20,000 Hz

TONE CONTROL

±12dB

MUSIC KEY CONTROL

±8 Steps (±1/4keys/step)

TOTAL HARMONIC DISTORTION (T.H.D.)

<0.1% @ 1KHz

FREQUENCY RESPONSE

20 – 20,000Hz (+/- 1dB)

ECHO VOLUME CONTROL

0 – 40 dB

CONSTRUCTION

Closed Box, 16 Ga Steel Chassis, 3/16” Aluminum Face Panel

WEIGHT

10 lbs (4.5 Kg)

DIMENSION (W X H X D)

17.1” X 3.5” X 11.8”(435 X 88 X 300 mm)
