APM1066 Professional Dynamic Microphone

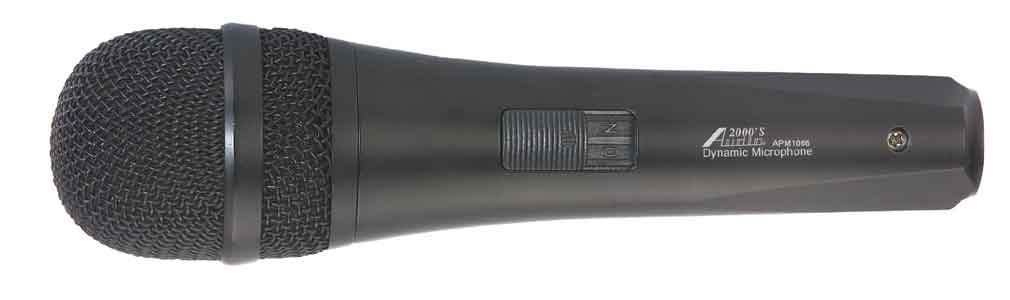

APM1066

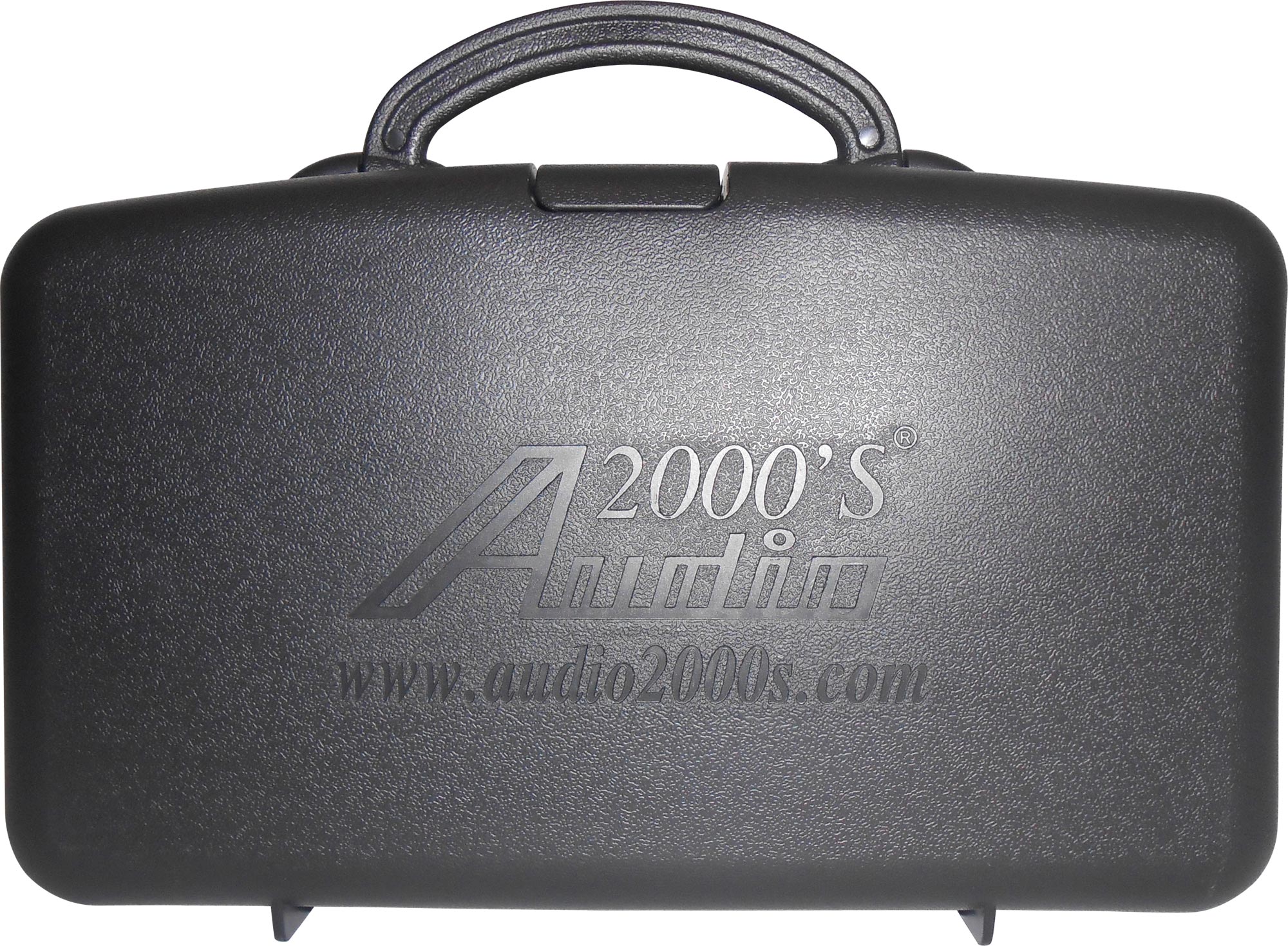

APM1066 Carrying Case



APM1066 Accessories



          The Audio2000S APM1066 is a versatile professional dynamic microphone of exceptionally high quality. A super efficient magnetic circuit design utilizing a neodymium magnet element provides maximum output level for improved signal-to-noise ratio for all vocal and sound reinforcement applications.

The APM1066s frequency response is optimized for the vocal application by controlling the proximity effect through its low-frequency rolloff.  The APM1066s extended high-frequency response significantly enhances the sound reinforcement clarity.

          Throughout the APM1066s full frequency range, the super-cardioid pattern stays uniform and symmetrical to significantly cut off any feedback and off-axis coloration. An advanced design in the shock-mounted microphone element and the delicately finished surface keep the handling noise extremely low.

          The extraordinary features of the sound clarity and transparency, high output, extremely low handling noise, uniform super-cardioid pickup pattern, and delicately designed and finished surface make the APM1066 microphone an outstanding microphone for any critical vocal applications.

PACKAGE

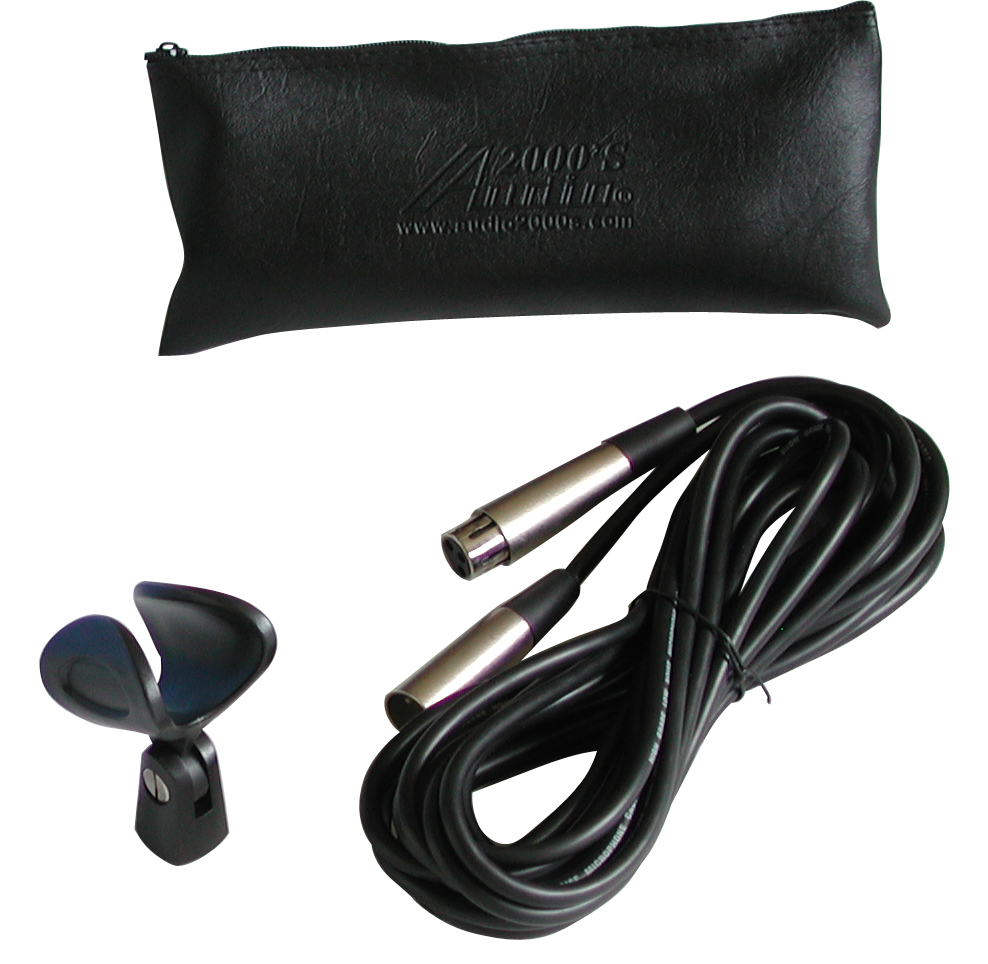

The standard APM1066 package includes an APM1066 microphone, a soft-rubber microphone clip, a pouch, and a 20' microphone cable (XLRF-XLRM or XLRF-1/4") in a deluxe colored cardboard box.

APPLICATIONS

Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment

FEATURES

        The APM1066 comprises a low impedance element with extremely lightweight diaphragm for an excellent transient response and a wide frequency range with exceptional detail and clarity.
        The APM1066 contains a magnet element precisely constructed in a housing having a wide dynamic range for smoothly reproducing a clear and uncolored sound.
        With a low-frequency rolloff and an extended high-frequency response, the APM1066 captures the original vocal sound with an extraordinary clarity.
        Tight super-cardioid pattern stays uniform and symmetrical throughout the entire APM1066s frequency range to minimize feedback.
        An advanced shockmount and microphone element design effectively minimize the handling and stand noise.
        Rugged and durable sandblasted zinc casing.
        A rugged dent-resistant steel mesh grille windscreen provides an extended life and durability.

 SPECIFICATIONS

Type

Dynamic

Polar Pattern

Super-Cardioid

Sensitivity

-71 3 dB (@ 1,000 Hz)

Output Impedance

600 Ohms 30% (@ 1,000 Hz)

Frequency Response

50 15,000 Hz ( 3 dB)

Max. Input Level (SPL)

120 dB

Dimension

Head Diameter 1.92 / 48.8mm
Total Length 7.21 / 183.0mm

Weight

10.6 oz / 300 g
