AKJ7806
- Singer's PowerTM VI
All-In-One Karaoke System
w/DVD/CDG/VCD/MP3/CDR/SVCD/CD Player

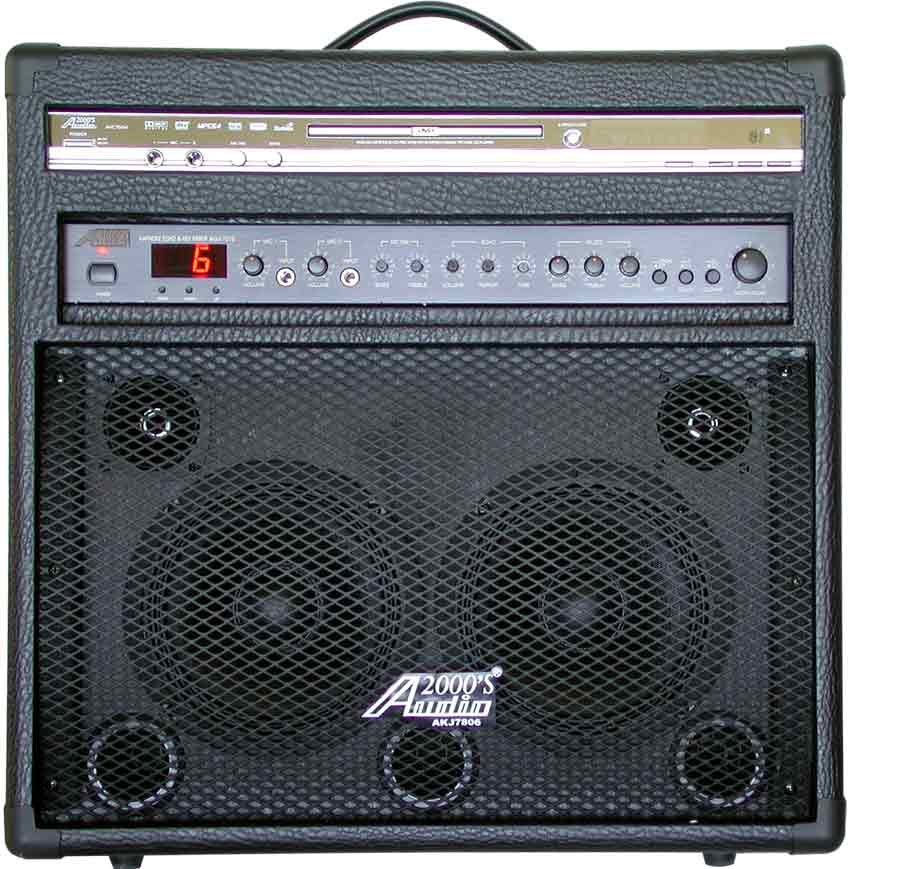

The Audio2000'S® AKJ7806 Singer's PowerTM VI All-In-One karaoke system is a
complete karaoke system with a DVD/CDG/VCD/MP3/CDR/CD-RW/SVCD/CD player, a karaoke mixing
amplifier, two 6" woofers, a pair of 3 1/2" tweeters, and a rugged wooden
case. Intended to be a solution provider for various application environment, the
AKJ7806 system is developed to provide the following benefits to the users:
| Dependability: |
The AKJ7806 system has been designed and manufactured
to be dependable, problem free, versatile and easy to use. |
| Portability: |
The AKJ7806 system is light enough to be highly
portable. |
| Quality: |
The karaoke mixing amplifier in the AKJ7806 comprises a
built-in 120W amplifier, three microphone inputs (one at the rear panel), two audio inputs,
digital key controls, and digital echo controls. A high quality karoke mixing amplifier
along with a high quality speaker present the AKJ7806 one of the most valuable complete
karaoke system in the market place with highly transparent and pleasant sound
quality. |
| Affordability: |
The AKJ7806 system is intended to be readily accessible
to everyone with exceptional performance at a preferred and affordable cost. |
|
|
APPLICATIONS
Public entertainment facility, church, school, restaurant, karaoke
box, home entertainment or other group events.
FEATURES
1. DVD/CDG/MP3/CDR/VCD/SVCD/CD Player
2. Digital Echo Control: Vol/Repeat/Delay-time
3. Three Microphone Inputs
4. Two (2) Individual Microphone Volume Controls
5. Microphone Tone Control (Treble/Bass)
6. Master Volume Control
7. Music Balance, Bass, Treble Control
8. UTAOKE/AFT Voice Auto Control
9. Record Out, Pre-out
10. Signal-to-Noise Ratio (IEC-A): 95dB
11. Two Input Source Selections
12. Max. Power Output (8 Ohms):60W +
60W
SPECIFICATIONS
Power Output |
120W (max) (60W RMS) |
Total Harmonic Distortion |
0.2% @ 1KHz, -3dB, 8 Ohms |
Mic. Input Sensitivity |
100mV @ 1KHz (T.H.D. 0.1%) |
Music Input Sensitivity |
150mV / 47 KOhms |
Output Level |
130mV / 50 KOhms |
Freq. Response |
25 - 80,000 Hz |
Signal-To-Noise Ratio |
95 dB |
Tone Control Char. (Bass) |
+/- 10 dB @ 100 Hz |
Tone Control Char. (Treble) |
+/- 10 dB @ 10 KHz |
Dimensions (W X H X D) |
18 3/8" X 19 3/4" X 12"
(467 X 502 X 305 mm) |
Weight |
44 lb (20 Kg) |
