AKJ7809 - RECORDABLE ALL-IN-ONE KARAOKE / PA SYSTEM

NOTE: An alternative version of the AKJ7809 is NOT recordable. Please check with the sales associate whom you are consulting with to make sure which version of the AKJ7809 they are selling.

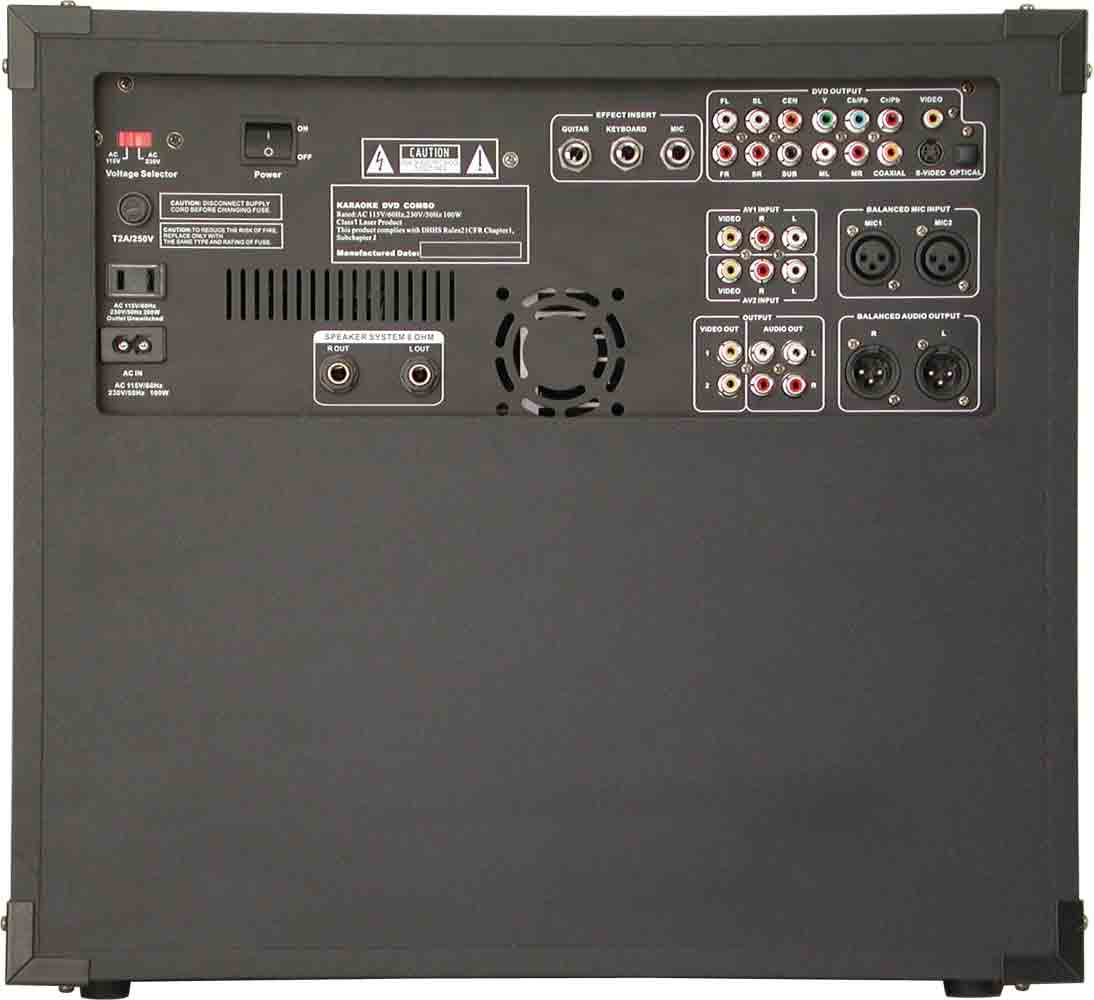

Front View                                                       Rear View



FUNCTIONS DIAGRAM FEATURES

AKJ7809 FRONT PANEL

AKJ7809 REAR PANEL

SPECIFICATIONS

 ACCESSORIES



AKJ7809 OWNER'S MANUAL





FUNCTIONS DIAGRAM:



FEATURES:

  • The "REC" button at the front panel provides the capacity to record the mixed music and microphone sound to the USB or the SD card.

  • The "COPY" button at the front panel copies music files to the USB or the SD card.

  • The built-in USB and SD card readers play VCD, WMA, AVI, MP4, DAT, MPG,  and JPG files in USB and SD card.

  • A multi-format player with the direct track access supports DVD, CDG, DVD-R, DVD-RW, VCD, MP4, DIVX, Photo-CD, CD, CD-R, and CD-RW formats.

  • All-in-one design delivers 100W of power through a 4-speaker (3" x 2 + 4" X 2) cabinet.

  • ¼-inch guitar and keyboard inputs with individual volume controls.

  • Digital echo with repeat and delay controls for vocal enhancement.

  • Digital key control (This feature is not applicable to the AUX inputs-AV1, AV2, and AV3).

  • Vocal cancel and vocal partner modes for canceling vocals from

  •   multiplexed media.

  • 7-band equalizer.

  • Three RCA audio-video inputs (AV1, AV2, and AV3).

  • Two microphone inputs (MIC1 and MIC2) with individual volume controls (two unbalanced ¼-inch microphone inputs at the front panel and two balanced microphone inputs at the rear panel).

  • Two RCA audio-video outputs, one stereo ¼-inch audio pre-out, and DVD 5.1 audio-video outputs.

  • Three effect inserts (GUITAR, KEYBOARD, and MIC).

  • One ¼-inch stereo headphone output.

  • Remote Control.

  • 115V / 230V and NTSC-PAL compatible for worldwide use.



Back to Top

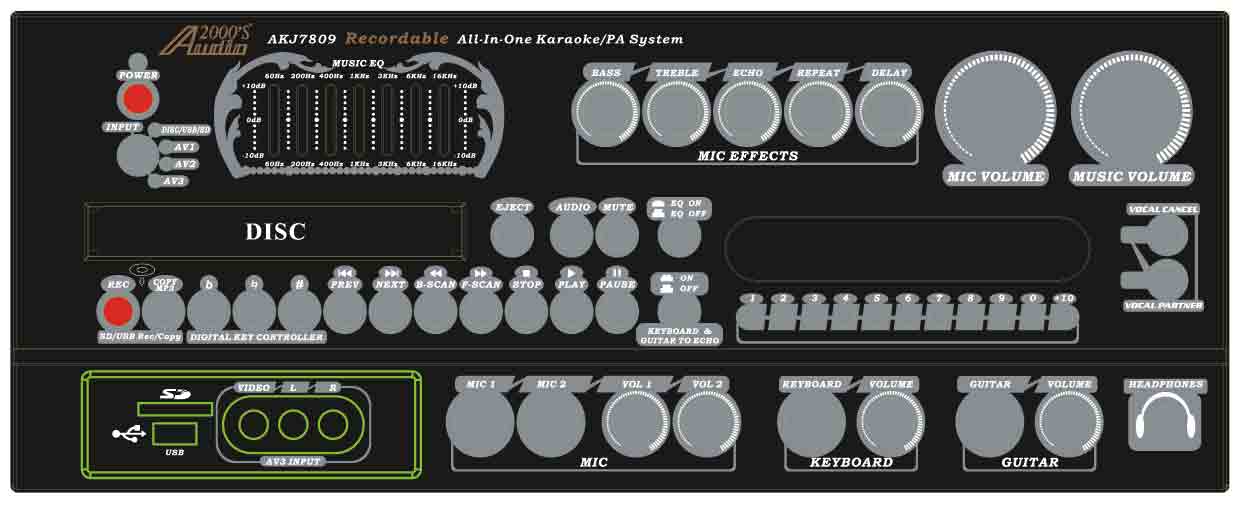

AKJ7809 FRONT PANEL:


Click here to enlarge the above image.

Back to Top

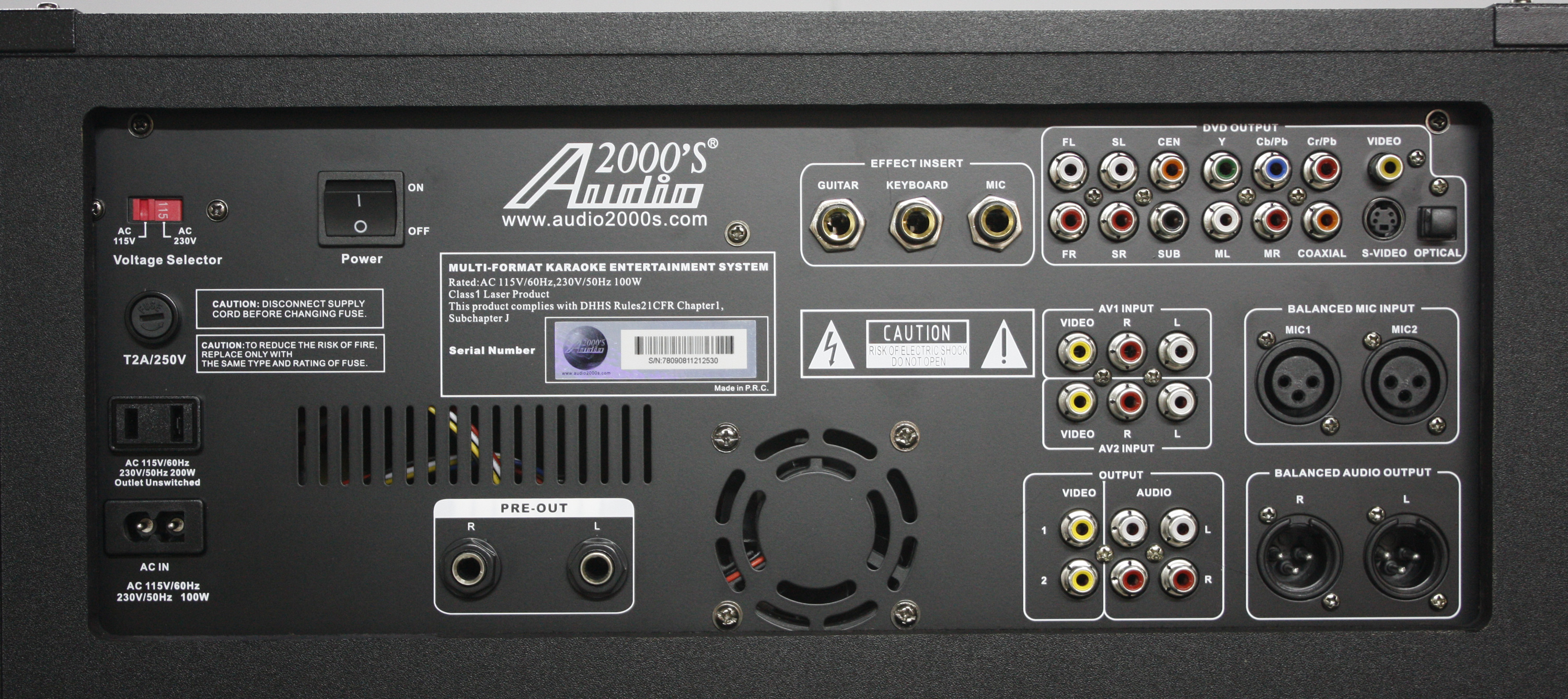

AKJ7809 REAR PANEL:


Click here to enlarge the above image.



Back to Top

SPECIFICATIONS:

Audio Output Power 100W (peak to peak)
Microphone Input Sensitivity 8mV
Keyboard / Guitar Input Sensitivity 8mV
Audio Input Sensitivity 500mV
Video Input Sensitivity 1 V (peak to peak)
Audio Output Level 1000 mV
Video Output Level 1 V (peak to peak)
S/N Ratio 90 dB
AC Input Voltage AC 115V 60 Hz / AC 230V 50 Hz
Dimension (D X W X H) 18.3" X 12.8" X 16.5"
Weight 35.4 lbs



Back to Top

ACCESSORIES:

        ITEMS                                      QUANTITIES
AKJ7809 Unit                                           1
AV/RCA Cable                                         1
ADM1064B Microphones                       2
Microphone Cables                                 2
Remote Control                                        1
AC Power Cord                                        1
AAA Batteries                                           2



AKJ7809 OWNER'S MANUAL:

Click here to extract the AKJ7809 Owner's Manual.
