AWM6514DP - UHF PLL 16-Frequency Single-Channel Diversity Wireless Microphone System

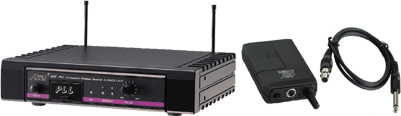

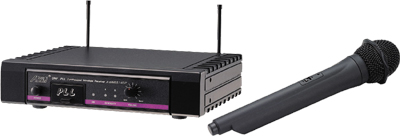

AWM6514DP	AWM6514DPG

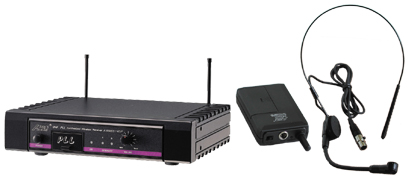

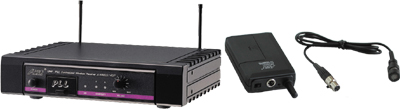

AWM6514DPH	AWM6514DPM

The Audio2000'S^Ž AWM6514DP wireless system is a rack-mountable (half-rack) UHF PLL 16-frequency single-channel diversity wireless microphone system with built-in 16 switchable frequencies to be selected with a frequency selector at the front panel. The AWM6514DP wireless system can have the options of one handheld microphone transmitter, one lavalier microphone transmitter, one headset microphone transmitter or one guitar transmitter.

The built-in 16 switchable frequencies are controlled by delicate PLL (Phase-Lock_loop) circuitries and can be utilized as an effective tool to overcome any RF interference problem by letting users switch the system to another frequency when the frequency being used encounters RF interference problems.

With the exceptional RF transmission and reception, the AWM6514DP system, with a transmission range of more than 250 feet, fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless without any of the problems.

Engineered For Dependable UHF Systems

As all the other Audio2000'S^Ž wireless products, the AWM6514DP system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range. An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

System Designed For Accessibility

The AWM6514DP system has been designed and manufactured to be dependable, problem free, versatile and easy to use. The AWM6514DP system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.

APPLICATIONS

Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment

AWR6514DP RECEIVER

FEATURES

* UHF Band Frequency (790-806 MHz)
* PLL (Phase-Lock-Loop) Synthesized Switchable 16 Frequencies
* One-Half Rack Case with Power and RF Indicators
* RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
* Low Noise Mixer Circuitry for Reducing interference
* 12V-18V DC Power Supply

SPECIFICATIONS

Carrier Frequency Range

UHF Band (790 – 806MHz)

Receiving System

PLL Synthesized

Frequency Stability

+/- 0.005%

S/N Ratio

> 94dB @ 48KHz deviation and @ 60dB uV Antenna Input

Image and Spurious Rejection

80dB Minimum

Receiving Sensitivity

8dB / uV @ 80dB S/N Ratio

Selectivity

> 50dB

Dynamic Range

> 96dB

Modulation Mode

FM

IF Frequency

1^st – 56MHz; 2^nd – 10.7MHz

Service Area

> 250ft (75M)

AF Response

40 – 15,000Hz (+/- 3dB)

T.H.D.

< 0.5% @ 1KHz

Audio Outputs

Balanced- -20dB (0dB = 0.775V)
Unbalanced- 0dB @ 48KHz Reference RF Deviation

Power Supply

DC 12-18V Adapter

AWX6590 & AWX6591 TRANSMITTERS

FEATURES

* UHF Band Frequency (790-806 MHz)
* PLL (Phase-Lock-Loop) Synthesized Switchable 16 Frequencies
* High Sensitivity Cardioid Capsule
* Noise Reduction Mechanism for Eliminating Handling Noise and Switch Shock Noise
* Low Battery LED Indicator
* Battery Life Up To 40 Hours

SPECIFICATIONS

Carrier Frequency Range

UHF Band (790 – 806MHz)

RF Power Output

2mW (Max.)

Frequency Stability

+/- 0.005%

S/N Ratio

60dB (A-Weighted)

Spurious Emission

More Than 45dB below Carrier Frequency

Maximum Deviation

+/- 15KHz within Limiting Compressor

AF Response

40 – 15,000Hz (+/- 3dB)

Microphone Capsule

Dynamic for Handheld Mic. Electret Condenser for Lavalier Mic.

Operating Voltage

DC1.5V X 2 (AA Batteries)

Battery Life

approx. 40 Hours

Current Consumption

Approx. 65mA (Max.)

LED Indicator

Power On/Off and Low Battery
