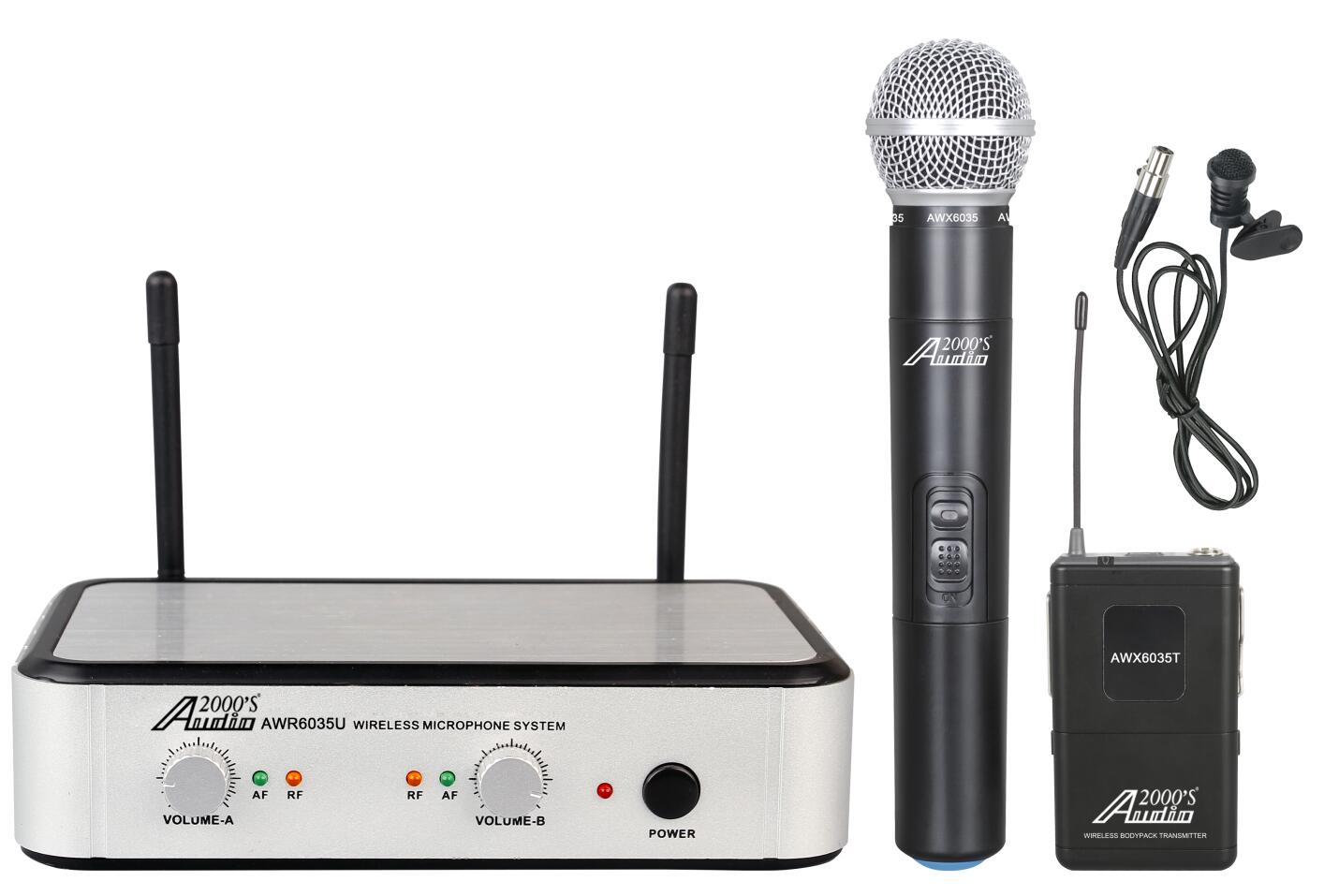

AWM6035U - Dual-Channel UHF Wireless Microphone Systems





FEATURES DESCRIPTIONS

AWR6035U FRONT VIEW



AWR6035U REAR VIEW



AWX6035 HANDHELD MICROPHONE



AWX6035T BODY-PACK TRANSMITTER



SYSTEM CONFIGURATIONS



APPLICATIONS



SPECIFICATIONS



AWM6035U OWNER'S MANUAL







FEATURES:

1.      UHF Band Frequencies

2.     Including Two Wireless Transmitters (Comprising Combinations of Handheld Microphones and/or Lavaliere Microphones)

3.    Two Independent Balanced XLR Outputs and One Mixed Unbalanced ¼” Output

4.    Two Independent Volume Control Knobs (One for Each Channel)

5.     Integrated Antenna for Effective RF Output and High Transmission Quality

6.    One Power Red LED Indicator, Two AF Red LED Indicators, and Two RF Green LED Indicators

7.    Rugged Receiver Chassis

8.   Operating Range up to 100ft

9. 12VDC Power Supply



Back to Top

DESCRIPTIONS:

The AWM6035U wireless system is one of the valuable wireless microphone systems with high performances  from Audio2000'S®.  The advanced circuitry of the AWM6035U wireless microphone system provides reliable RF transmission and reception with a transmission range of 100 feet.  With the exceptional RF transmission and reception, the AWM6035U system fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless without any of the problems.

Engineered For Dependable UHF Systems

The AWM6035U system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to any professional wireless system costing much more.  This is achieved through strict component selection and high quality circuit design.  A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range.  An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.

Features Configured To Be User Friendly

To suit the needs of your application demands, the selection of the transmitters to be used with the AWM6035U system includes handheld microphone transmitter, lavalier microphone transmitter, headset microphone transmitter, and/or guitar transmitter.

System Designed For Accessibility

The AWM6035U system has been designed and manufactured to be dependable, problem free, versatile and easy to use.  The AWM6035U system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.

Back to Top

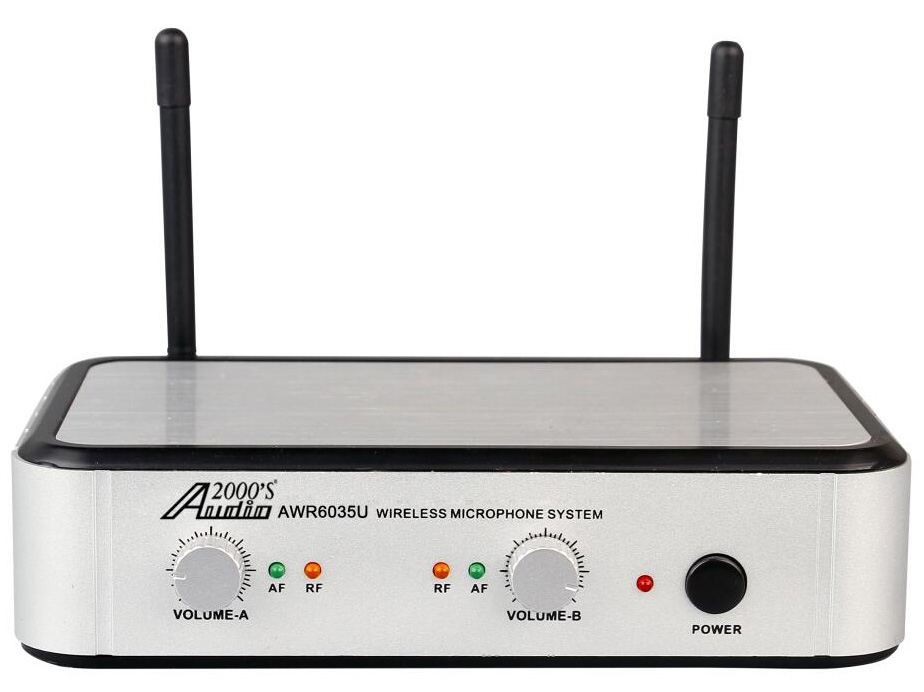

AWR6035U FRONT VIEW

Click here to enlarge the above image.

Back to Top

AWR6035U REAR VIEW



Click here to enlarge the above image.

Back to Top

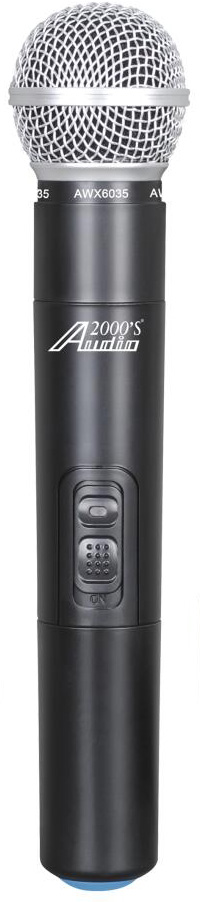

AWX6035 HANDHELD MICROPHONE

Click here to enlarge the above image.

Back to Top

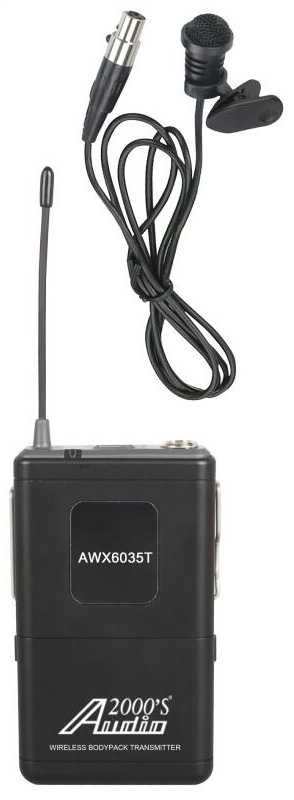

AWX6035T BODY-PACK TRANSMITTER

Click here to enlarge the above image.



Back to Top

SYSTEM CONFIGURATIONS:

The Audio2000'S® AWM6035U wireless system is a UHF dual-channel wireless microphone system.            Similar to the other Audio2000'S® wireless systems, various transmitter options are provided to the         AWM6035U system users as follows:

(1) Handheld Wireless Microphone System - AWM6035U (AWR6035U + 2 X AWX6035's)





(2) Wireless System with One Handheld Microphone and One Lavalier Microphone -
      AWM6035UL
(AWR6035U + AWX6035 + AWX6035T + Lavalier Microphone)



(3) Wireless System with Two Lavalier Microphones -
      AWM6035UM
(AWR6035U + 2 X AWX6035T's + 2 X Lavalier Microphones)







Back to Top

APPLICATIONS:

Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment



Back to Top

SPECIFICATIONS:

AWR6035U RECEIVER

CARRIER FREQUENCY RANGE

571 - 598 MHz

FREQUENCY STABILITY

±0.005%

RECEIVING SENSITIVITY

-105dBm

S/N RATIO

85dB

TOTAL HARMONIC DISTORTION

<0.5%

AUDIO OUTPUT

1/4" and XLR (0 - ±300mV @600Ω)

DIMENSIONS (W X D X H)

16.6” X 9.3” X 1.8” (422 X 235 X 45 mm)



AWX6035 TRANSMITTER

CARRIER FREQUENCY RANGE

571 - 598 MHz

FREQUENCY STABILITY

±0.005%

MODULATION TYPE

FREQUENCY MODULATION (FM)

MODULATION DEPTH

40KHz

OUTPUT POWER

30mW, Max

SPURIOUS EMISSION >55dB

BATTERY

2 X 1.5V AA BATTERIES

CURRENT CONSUMPTION

<40mA

DIMENSIONS (W X D X H) HANDHELD: 9.4” X 2.0” X 2.0” (240 X 51 X 51 mm)

BODY-PACK: 2.6” X 3.9” X 1.2” (65 X 100 X 30 mm)



AWM6035U SYSTEM

CARRIER FREQUENCY RANGE

571 - 598 MHz

FREQUENCY STABILITY

±0.005%

AUDIO FREQUENCY RESPONSE

80 – 15,000 Hz

IMAGE & SPURIOUS REJECTION

50dB Minimum

S/N RATIO

>80dB

MAX. SPL

110dB

TOTAL HARMONIC DISTORTION

<1%

SERVICE AREA

100ft

OPERATION TEMPERATURE

14 - 122 Deg F

Back to Top

AWM6035U OWNER'S MANUAL:

Click here to extract the AWM6035U Owner's Manual.
