ASP5206 - 400W Full Range 2-Way 10" Professional Loud Speaker

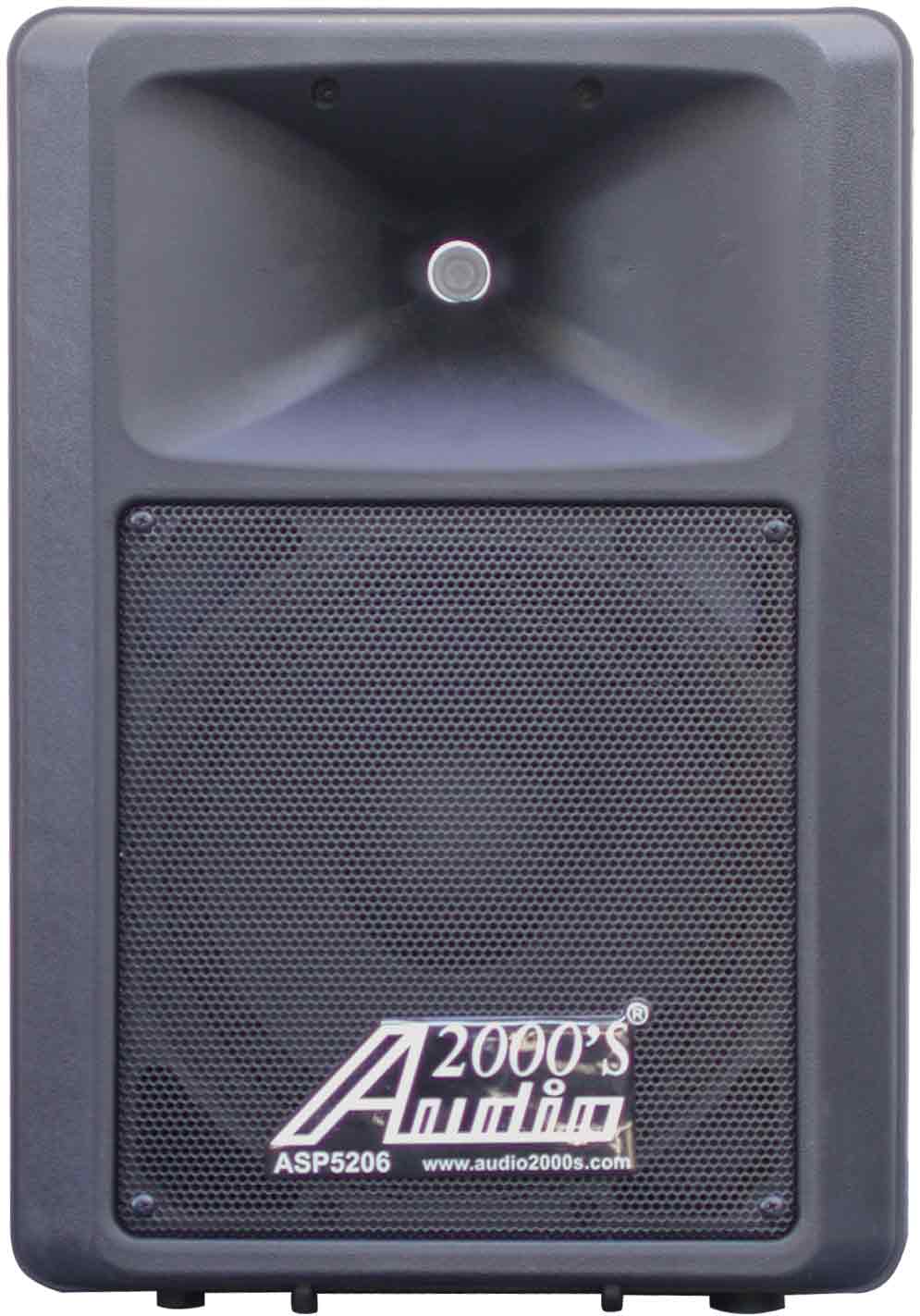

The Audio2000'S^Ž ASP5206 PA speaker is an extremely reliable full-range two-way pro-audio speaker with a great value. This ASP5206 PA speaker is configured with a 10" woofer and a 5" X 10" dispersion horn tweeter with a replaceable 1.35" titanium diaphragm driver. The 10" woofer and the 5" X 10" dispersion horn, incorporating with a high pass crossover network, are fine tuned for superior sound reproduction in a variety of professional applications.

ASP5206 PA Speaker Features:

* 400Watts,max./200Watts, rms 2-Way System
* 10" Low Frequency Woofer
* 5" X 10" Dispersion Horn Tweeter with 1.35" Titanium Diaphragm
* Acoustic-Tune Ports for Superior Sound Venting
* 12dB / Octave High Pass Crossover Network
* 1-3/8" Internal Speaker Mounting Top Hat
* One Speakon Input, One 1/4" Input, One 1/4" Output
* Handles for Easy Carrying
* Monitor Speaker Support Frame Included

ASP5206 PA Speaker Specifications

Impedance

8 Ohms

Dimension

13 3/4"W X 11 1/4"D X 19 3/4"H

Frequency Response

50 - 19KHz

Sensitivity

95dB @ 1M, 1W

Weight 13.2 Kg (29 lb)

Power Rating

400W Max; 200W RMS
