APA9204
- Two-Input/Eight-Output Professional
Headphone Amplifier

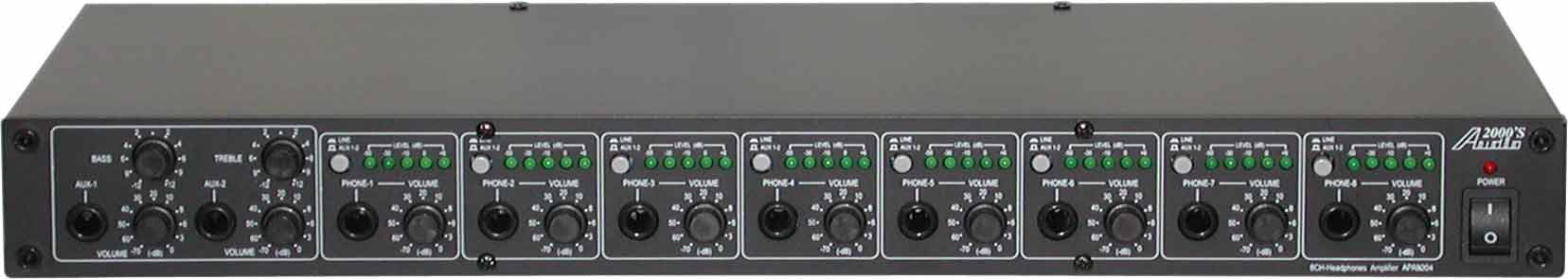

Front View

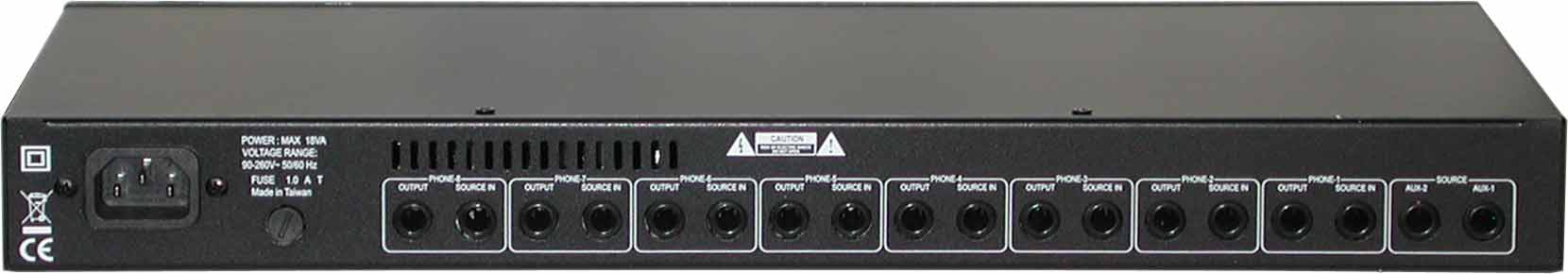

Rear View
The Audio2000'S® APA9204
is an eight channel professional
headphone amplifier.
APPLICATIONS
Project recording applications
FEATURES CONFIGURED TO BE USER FRIENDLY
- Stereo 1/4"
Input Jacks
- Stereo 1/4"
Headphone output Jacks
- Level control for each channel
SPECIFICATIONS
| POWER (LOAD: 32
Ohms) |
1.0W, NOMINAL @ < 1%
T.H.D. |
| GAIN |
30 +/- 5 dB |
| INPUT SENSITIVITY |
100 +/- 10 mV |
| FREQUENCY RESPONSE |
20 - 20,000 Hz |
| TONE
CONTROL |
BASS: > +/- 10
dB |
| TREBLE: > +/-
10 dB |
| NOISE |
VR MIN: < 0.2 mV |
| VR MAX: < 0.33 mV |
| T.H.D. |
< 0.2% @ 1.0 W |
| HUM |
VR MIN: > -90 dB
(-90 dB, NOM) |
| VR MAX: > -85 dB
(-85 dB, NOM) |
|
CROSSTALK |
1K: > -60 dB (-70
dB, NOM) |
| 10K: > -50 dB
(-60 dB, NOM) |
| DIMENSIONS |
|
| WEIGHT |
|
