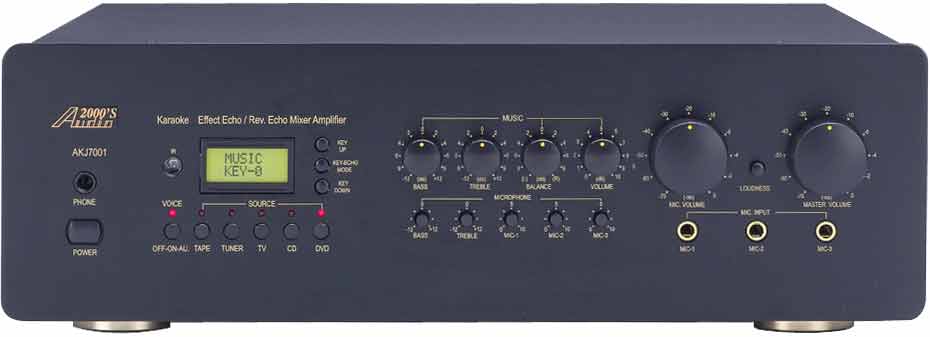

AKJ7001 - DSP Reverb, Echo & Key Mixing Amplifier with Remote Control

The Audio2000'S^® AKJ7001 DSP reverb, echo & key mixing amplifier with remote control is one of the most advanced karaoke equipment featuring innovative design and user-friendly functions.

Incorporated with an embedded digital signal processor (DSP), the AKJ7001 features the microphone reverb and echo functions, and the music digital key control.

The AKJ7001 features five microphone inputs and five music source  inputs.  Three microphone inputs are at the front panel while two microphone inputs are at the rear panel.  There are three overall volume control knobs: One master volume control knob, one music volume control knob, and one microphone volume control knob. The master volume control knob is used to control the sound level of the combined music and microphone audio signals.  The music volume control knob is used to control the music sound level. The microphone volume control is used to control all three microphone sound levels at the same time. Three individual microphone volume control knobs are featured to adjust each microphone volume individually so that sound level of individual voice can be compensated as desired.  Both the microphone inputs and the music source inputs have the treble and bass controls.

The AKJ7001 further features a key control function, a reverb function, an echo control function  and a voice canceling function.  The key control function provides the users the capabilities of adjusting the key of the background music to match the users' voice.  The reverb control function allows the users to control the reverb volume. The echo control function enables the users to control or adjust the echo volume, the echo delay, and/or the echo repeat. The voice canceling function enhances the users' entertainment capacity by allowing users to remove the multiplexed vocal sound from the background music as desired.

A full-function remote control is included for users' conveniences. The AKJ7001 is equipped with a powerful 600W maximum total power output at 8 Ohms.

In addition,  four audio input terminals and three video input terminals enable users to operate up to four audio/video equipment simultaneously. Two video output jacks allow the users to use two TV's or monitors at the same time.  The tape-in and tape-out terminals are provided for recording purpose.

The extraordinary features of quality key control with extremely low key-shift distortion, clear/transparent reverb and echo sound, versatile performances and function, and rugged/delicate appearance make the AKJ7001 professional karaoke mixing amplifier an outstanding value in any critical karaoke or DJ application.

APPLICATIONS

Karaoke jockey (KJ); karaoke; home entertainment

FEATURES CONFIGURED TO BE USER FRIENDLY

1. 600W Maximum Total Power Output

2. Digital Signal Processor (DSP)

3. Green  LCD  Display

4. Full Function REMOTE CONTROL

5. Built-in Stereo Power Amplifier

6. Temperature/Output DC/Short Circuit Protection

7. Turn-On Output Muting

8. Subsonic & Ultrasonic Filters

9. AC Circuit Breaker (on Fuse)

10. Five Microphone Inputs

11. Individual Microphone Volume Controls

12. Music Volume, Master Microphone Volume, and Master Volume Controls

13. Microphone Tone Controls

14. Digital REVERB & ECHO

15. Digital KEY CONTROL

16. MULTI AUDIO Karaoke Function

17. Three VIDEO Inputs and Four AUDIO Inputs

18. Two Audio and Video Outputs

19. One Tape-In and One Tape-Out

SPECIFICATIONS

OUTPUT POWER RATING	300W/Channel, RMS (400W/Channel, Max.) @ 4 Ω  200W/Channel, RMS (300W/Channel, Max.) @ 8 Ω
INPUT SENSITIVITY	MICROPHONE--- 75 dB DVD --- 40 dB CD --- 40 dB TV --- 40 dB TUNER --- 40 dB TAPE IN --- 40 dB
OUTPUT LEVEL	4V @ 10K Ω
S/N RATIO	90 dB @ 8 Ω, 20 – 20,000 Hz
TONE CONTROL	±12dB
MUSIC KEY CONTROL	±8 Steps (±1/4keys/step)
TOTAL HARMONIC DISTORTION (T.H.D.)	<0.1% @ 1KHz
FREQUENCY RESPONSE	20 – 20,000Hz (+/- 1dB)
ECHO VOLUME CONTROL	0 – 40 dB
CONSTRUCTION	Closed Box, 16 Ga Steel Chassis, 3/16” Aluminum Face Panel
WEIGHT	26 lbs (12 Kg)
DIMENSION (W X H X D)	17.1” X 5.2” X 11.8”(435 X 132 X 300 mm)
