AKJ7000 - Prof. Karaoke Mixing Amplifier with Digital Key Controls
& Echo

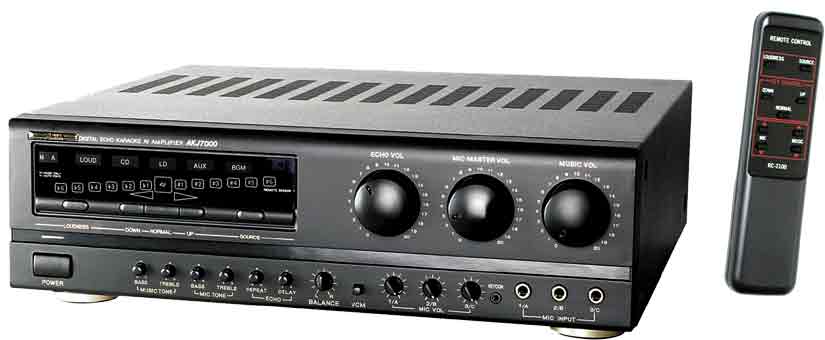

The Audio2000'S® AKJ7000 professional karaoke mixing
amplifier with digital key controls & echo is a direct response to the needs and
desires of karaoke professionals as well as home users. The AKJ7000 allows you to mix six
(6) microphones (three at the front panel and three at the rear side) and
four-audio/three-video inputs with outstanding performances equal to that of any
professional mixing amplifiers costing much more.
The AKJ7000 has been engineered for high quality sound with a wide
dynamic range, low noise level, and a minuscule total harmonic distortion (THD) of 0.03%
or less. This is achieved through strict component selection and high quality
circuit design.
Features Configured To Be User Friendly
- Remote Control
- 180W + 180W Max. Power Output (8 Ohms)
- Six Microphone Inputs
- Master Microphone Volume Control
- Three (3) Individual Microphone Volume Controls
- Microphone Tone Control (Treble/Bass)
- Master Music Volume Control
- Music Balance, Treble, and Bass Controls
- Digital Key Controller (+/- 6 Steps)
- Digital Echo Volume/Delay/Repeat Controls
- VCM Automatic Control
- Microphone Sound Effector Loop
- Music Sound Effector Loop
- Four Stereo Audio Inputs
- Three Video Inputs and Outputs
SPECIFICATIONS
| Max. Output |
360W / 8 Ohms (EIAJ) (180W X 180W) |
| Total Harmonic Distortion |
0.03% @ 1KHz, -3dB, 6 Ohms |
| Mic. Input Sensitivity |
6mV / 600 Ohms |
| Input Sensitivity |
300mV / 22 KOhms |
| Output Level (Pre-Out) |
2.5V / 1 KOhms |
| Mic. Freq. Response |
10 - 25,000 Hz |
| Music Freq. Response |
10 - 40,000 Hz |
| Tone Control Char. (Bass) |
+/- 10 dB @ 100 Hz |
| Tone Control Char. (Treble) |
+/- 10 dB @ 10 KHz |
| Speaker Terminal Load |
4 to 16 Ohms if use either terminal 1 or 2
6 to 16 Ohms if use both terminals 1 and 2 |
| Key Control Range |
13 steps, +/- 3 Tones |
| Video Input Sensitivity |
1Vp-p @ 75 Ohms |
| Video Output Sensitivity |
1Vp-p @ 75 Ohms |
| Power Consumption |
185W |
| AC Power Outlets(Switched) |
One Outlet (100W Max) |
| AC Power Outlets(Unswitched) |
One Outlet (200W Max) |
| Dimensions (W X H X D) |
420 X 130 X 398mm (16.5" X 5.1" X 15.7") |
| Weight |
11.8 Kg (26.0 lb) |
| Accessories |
Remote Control Commander |
