AKJ780A - RECORDABLE ALL-IN-ONE KARAOKE / PA SYSTEM WITH RECHARGEABLE BATTERIES






FUNCTIONS DIAGRAM FEATURES

AKJ780A FRONT PANEL

AKJ780A REAR PANEL

SPECIFICATIONS

 ACCESSORIES



OWNER'S MANUAL





FUNCTIONS DIAGRAM:



FEATURES:

  • The built-in high-capacity rechargeable batteries (24 AHr, upgradeable to 48 AHr) provide up to 8 hours (16 hours if upgraded to 48 AHr) of continuous use.

  • The "REC" button at the front panel provides the capacity to record the mixed music and microphone sound to the USB or the SD card.

  • The "COPY" button at the front panel copies music files to the USB or the SD card.

  • The built-in USB and SD card readers play VCD, WMA, AVI, MP4, DAT, MPG,  and JPG files in USB and SD card.

  • A multi-format player with the direct track access supports DVD, CDG, DVD-R, DVD-RW, VCD, MP4, DIVX, Photo-CD, CD, CD-R, and CD-RW formats.

  • All-in-one design delivers 180W of power through a 6-speaker (1" X 2; 3" x 2; 6.5" X 2) cabinet.

  • ¼-inch guitar and keyboard inputs with individual volume controls.

  • Digital echo with repeat and delay controls for vocal enhancement.

  • Digital key control (This feature is not applicable to the AUX inputs-AV1, AV2, and AV3).

  • Vocal cancel and vocal partner modes for canceling vocals from

  •   multiplexed media.

  • 7-band equalizer.

  • Three RCA audio-video inputs (AV1, AV2, and AV3).

  • Two microphone inputs (MIC1 and MIC2) with individual volume controls (two unbalanced ¼-inch microphone inputs at the front panel and two balanced microphone inputs at the rear panel).

  • Two RCA audio-video outputs, one stereo ¼-inch audio pre-out, and DVD 5.1 audio-video outputs.

  • Three effect inserts (GUITAR, KEYBOARD, and MIC).

  • One ¼-inch stereo headphone output.

  • Remote Control.

  • 115V / 230V and NTSC-PAL compatible for worldwide use.



Back to Top

AKJ780A FRONT PANEL:


Click here to enlarge the above image.



Back to Top

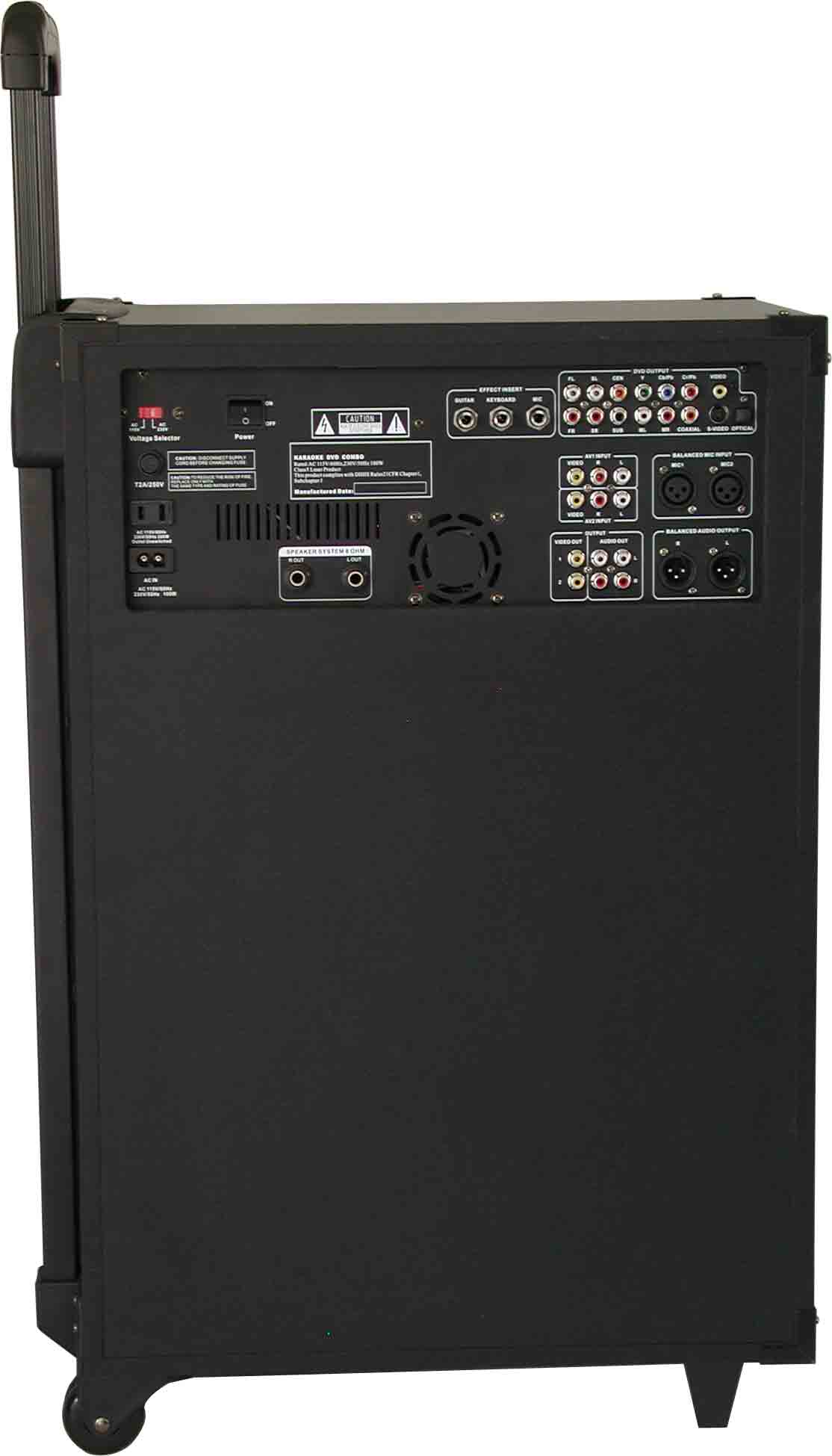

AKJ780A REAR PANEL:




Click here to enlarge the above image.



Back to Top

SPECIFICATIONS:

Audio Output Power 180W (peak to peak)
Rechargeable Battery Capacity 24 AHr (Upgradeable to 48 AHr)
Microphone Input Sensitivity 8mV
Keyboard / Guitar Input Sensitivity 8mV
Audio Input Sensitivity 500mV
Video Input Sensitivity 1 V (peak to peak)
Audio Output Level 1000 mV
Video Output Level 1 V (peak to peak)
S/N Ratio 90 dB
AC Input Voltage AC 115V 60 Hz / AC 230V 50 Hz
Dimension (D X W X H) 19.3" X 12.8" X 28.0"
Weight 74.4 lbs



Back to Top

ACCESSORIES:

        ITEMS                                      QUANTITIES
AKJ780A Unit                                           1
AV/RCA Cable                                         1
ADM1064B Microphones                       2
Microphone Cables                                 2
Remote Control                                        1
AC Power Cord                                        1
AAA Batteries                                           2



OWNER'S MANUAL:

Click here to extract the AKJ780A Owner's Manual.
